5' E39 530d Lubrication system/Oil pump with drive

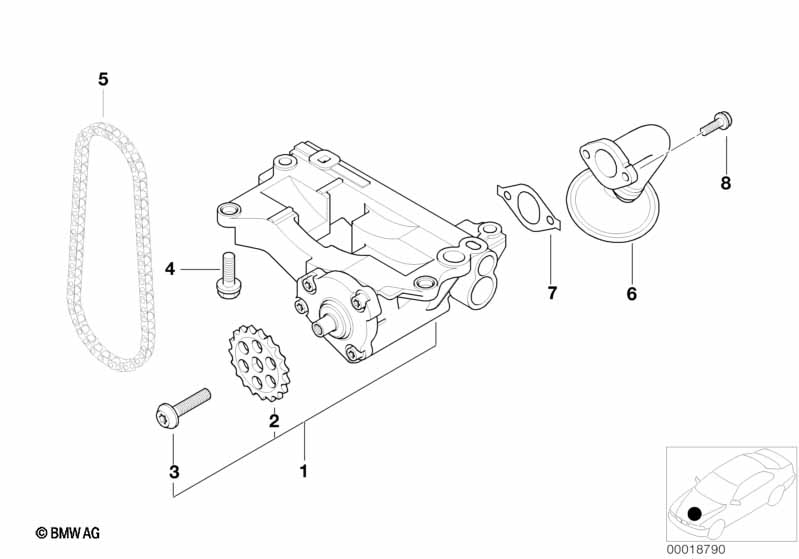

Lubrication system/Oil pump with drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil pump 1 11417789838 $364.55 +core
only in conjunction with
-- Collar screw M6X18-ZNS3 2 11537804636 $0.60
02 Oil pump sprocket 1 11412247304 $15.00
03 Torx bolt M8X35 1 11412248162 $1.03
04 Hex bolt with washer M8X28-Z1-PHR 4 07119904507 $0.53
05 Chain 1 11412249745 $30.08
06 Intake tube 1 11412248294
07 Gasket Asbestos Free 1 11412247885
08 Collar screw M6X18-ZNS3 2 11537804636 $0.60
Notes
  • +core = plus core charge (possibility of a return of the old part)
