5' E39 530d Cooling System Water Hoses

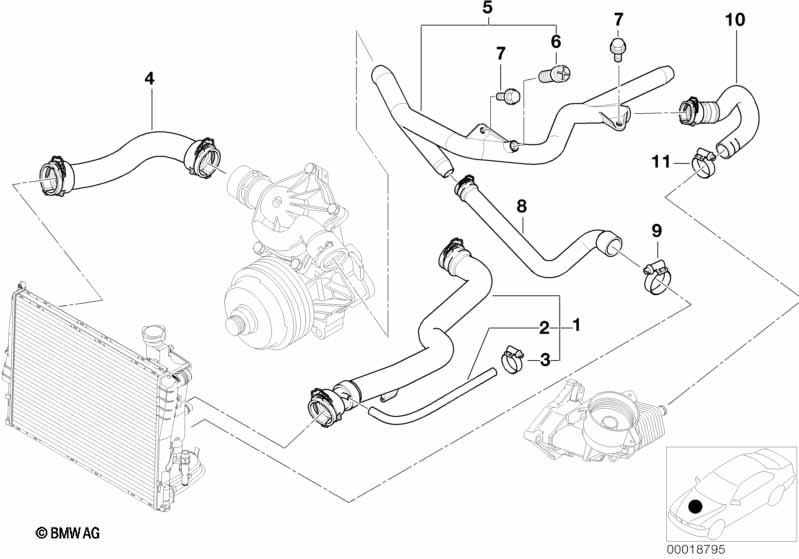

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Heater water hose
see main section 64
01 Water hose 1 08/2000 11537785018 $45.29 +core
02 Water hose 1 08/2000 17122244493
03 Hose clamp L12-15 1 08/2000 07129952104 $1.18
04 Water hose 1 08/2000 11532248865 $18.75 +core
05 Return pipe 1 08/2000 11532247681
06 Vent screw M10 1 08/2000 11537793373 $5.79
07 Collar screw M6X18-ZNS3 2 08/2000 11537804636 $0.60
08 Water hose 1 08/2000 11532247820
09 Hose clamp L32-38 1 08/2000 07129952115 $1.27
10 Water hose 1 08/2000 11352247879
11 Hose clamp L16-30 1 08/2000 64218367179 $1.07
Notes
  • +core = plus core charge (possibility of a return of the old part)
