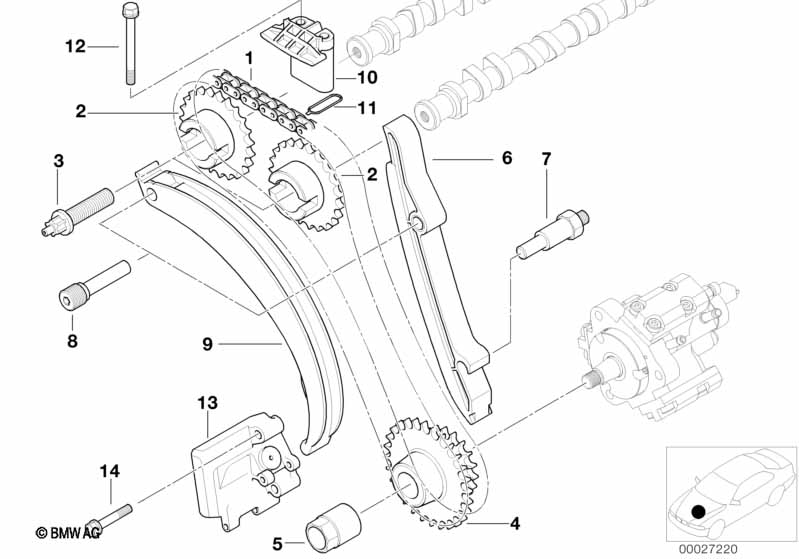

5' E39 530d timing gear timing chain top

timing gear timing chain top
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing chain 1 11312248728
02 Camshaft sprocket 2 11312247052
03 Torx bolt M12X1,5X45 2 11312248113
04 Sprocket high-pressure pump 1 13522247053
05 Hexagon nut with collar M14X1,5 1 13522247623 $2.37
06 Guide rail 1 11312247333
07 Bolt 1 11117787559 $5.14
08 Bolt 2 11317806351 $5.35
09 Chain tensioner 1 11312247332
10 Guide rail 1 11312247334
11 Profile-gasket 1 11312249978
12 Hex bolt with washer M6X60-Z1 2 07119902062 $0.89
13 Chain tensioner 1 13522247644
14 Hex bolt with washer M6X30-Z1-PHR 2 07119902064 $0.45
