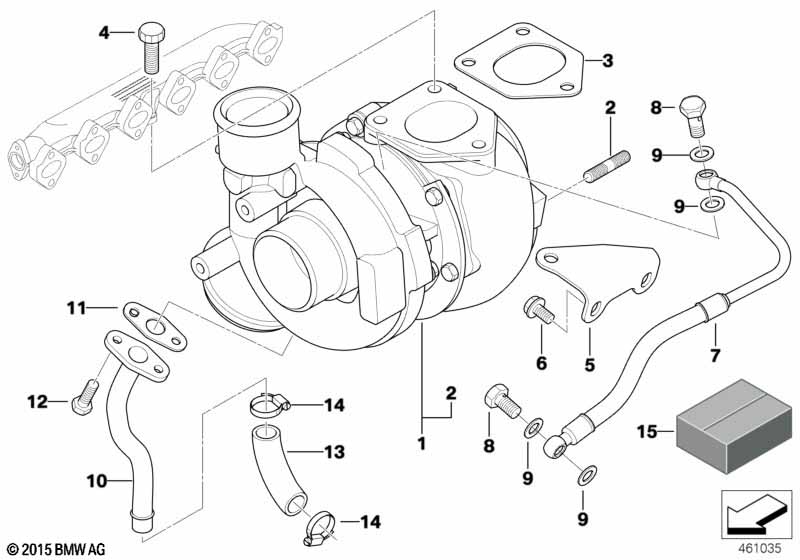

5' E39 530d Turbo charger with lubrication

Turbo charger with lubrication
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please always observe repair
instructions 11 65 020!
01 Exch. turbo charger 1 11652248906 $2030.19
only in conjunction with
-- Turbocharger additive 20G 1 83192362168
-- Gasket Asbestos Free 1 11422246091 $1.19
-- Return pipe 1 11422247916
-- Hose 1 11422247921
-- Hose clamp L18-24 2 07129952109 $1.07
02 Stud bolt M10X60 2 11142245277
03 Gasket Asbestos Free 1 11622244515 $11.90
Required for repair
-- Screw M10X25 3 11652243402 $5.37
03 Gasket Asbestos Free 1 11622244516 ENDED
04 Screw M10X25 3 11652243402 $5.37
05 Support 1 11652248056
06 Hex bolt with washer M8X16-Z1 3 09/2006 07119900268 $0.53 ENDED
06 Hex bolt with washer M8X16 3 07119905528 $0.62
07 Oil pipe 1 11422247915
08 Hollow bolt M10X1-ZNNIV SI 2 07119907291
09 Gasket ring A10X15-CU 4 07119905041 $0.25
10 Return pipe 1 11422247916
11 Gasket Asbestos Free 1 11422246091 $1.19
12 Hex bolt M6X14-ZNNIV SI 2 07119905964
13 Hose 1 11422247921
14 Hose clamp L18-24 2 07129952109 $1.07
Notes
  • ENDED = the part has been discontinued (no longer available).
