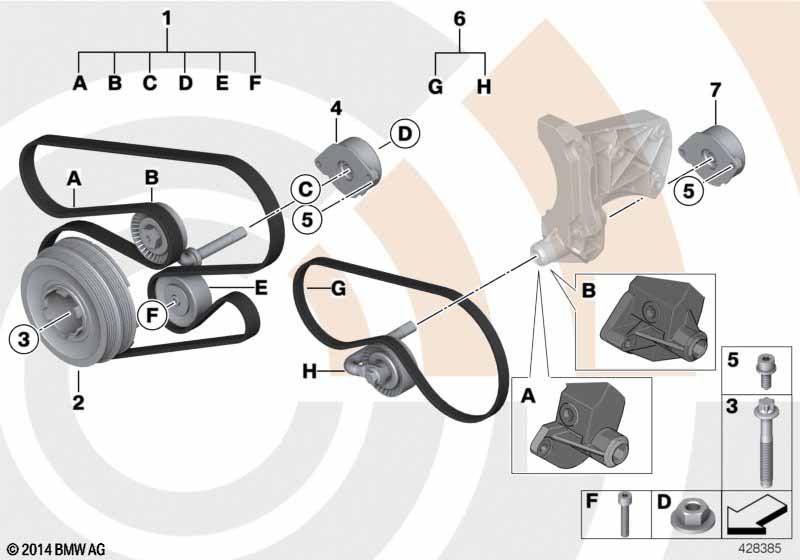

5' E39 530d Rep. kit, drivebelt assembly,Value Line

Rep. kit, drivebelt assembly,Value Line
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please observe Repair Manual.
01 Set, belts for water pump, alternator VALUE LINE 1 11282339125
02 Vibration damper 1 11232247890 $647.82
03 Torx bolt M10X86 4 11232247932 $2.87
04 Belt tensioner 1 11282354130 $91.76
05 Torx screw with collar M7X38 2 11517789351
Please observe Repair Manual.
06 Set, drive belt, a/c compressor VALUE LINE 1 10/2000 11282339154
only applies to condition "B"
Not suitable for condition 'A'
Please observe Repair Manual.
06 Set, drive belt, a/c compressor VALUE LINE 1 10/2000 11282339154
07 Belt tensioner 1 64557786076 $49.53
