5' E39 530d Oil cooler/Oil cooling pipe

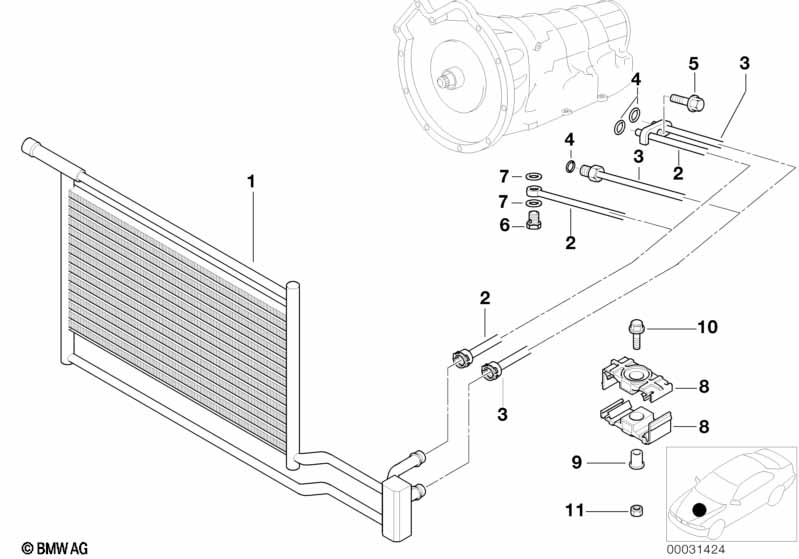

Oil cooler/Oil cooling pipe
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooler 1 17212247360 $400.64
02 Oil cooling pipe inlet GM5 1 17222248052 +core
03 Oil cooling pipe outlet GM5 1 17222248054 +core
04 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
05 Screw M8X28-Z3 1 17227555715 $0.78
08 Bracket oil pipe 2 17201712210 $1.02
09 Spacer sleeve D6 1 17227798686 $3.32
10 Hex bolt M6X35-8.8-ZNS3 1 07119902998 $0.38
11 Self-locking hex nut M6 1 64509123157 $0.70
Notes
  • +core = plus core charge (possibility of a return of the old part)
