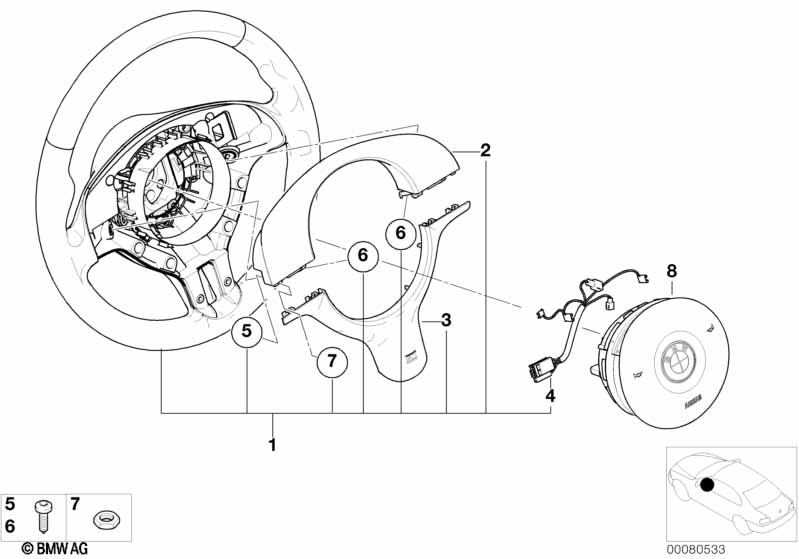

5' E39 530d M sports strng whl,leather,airbag-smart
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Slip ring, see HG 61, integrated Support f steering column switch For vehicles produced from 09/01/2001 |
||||||||
| 01 | M sports steer.-wheel, airbag, leather | SCHWARZ/SCHWARZ | 1 | 09/2001 | 32342282024 | ||||
| 02 | Cover cap, sports steering wheel | 1 | 09/2001 | 61318383366 | $176.32 | +core | |||
| 03 | M cover | SCHWARZ | 1 | 09/2001 | 32347833355 | $141.43 | |||
| 04 | Connecting line, airbag / slip ring | 1 | 09/2001 | 32301097246 | $28.75 | ||||
| 05 | Hex bolt | M4X12 | 6 | 09/2001 | 32301096838 | $0.41 | |||
| 06 | Hex bolt | M4X15 | 2 | 09/2001 | 32301096839 | $0.45 | |||
| 07 | Plug-in nut | M4 | 6 | 09/2001 | 32301096840 | $2.91 | |||
| 08 | Hub cap, airbag | 1 | 03/2002 | 12/2003 | 32306757891 | $771.52 | ENDED | ||
| 08 | Hub cap, airbag | 1 | 03/2002 | 12/2003 | 32306880599 | ||||
| Note Repair Manual | |||||||||
| 08 | Hub cap, airbag | 1 | 09/2001 | 03/2002 | 32306757891 | $771.52 | ENDED | ||
| 08 | Hub cap, airbag | 1 | 09/2001 | 03/2002 | 32306880599 | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
