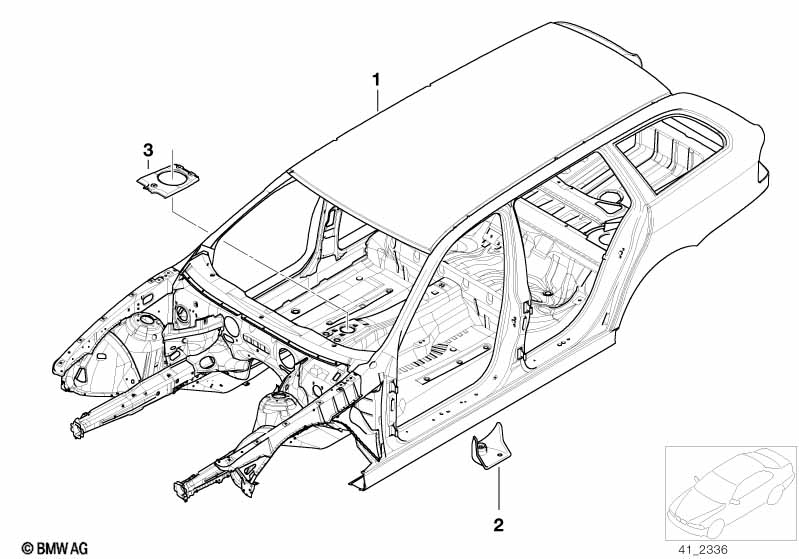

5' E39 530d Body skeleton

Body skeleton
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
ITS - Head airbag
or
automatic trunk lid mechanism

S262A=Yes

S316A=Yes
01 Body skeleton BASIS 1 09/1997 41007007733 ENDED
only in conjunction with
01 Body skeleton sliding lifting roof BASIS 1 09/1997 41007007734 ENDED
only in conjunction with
-- Support f gear shift lug with steptronic 1 09/1997 41128176686 ENDED
-- Support f front/centre left transmiss. 1 09/1997 41128203909
-- Support f front/centre right transmiss. 1 09/1997 41128203910 ENDED
02 Support f rear left transmission 1 41128186471
02 Support f rear right transmission 1 41128186472
03 Support f gear shift lug with steptronic 1 41128176686 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
