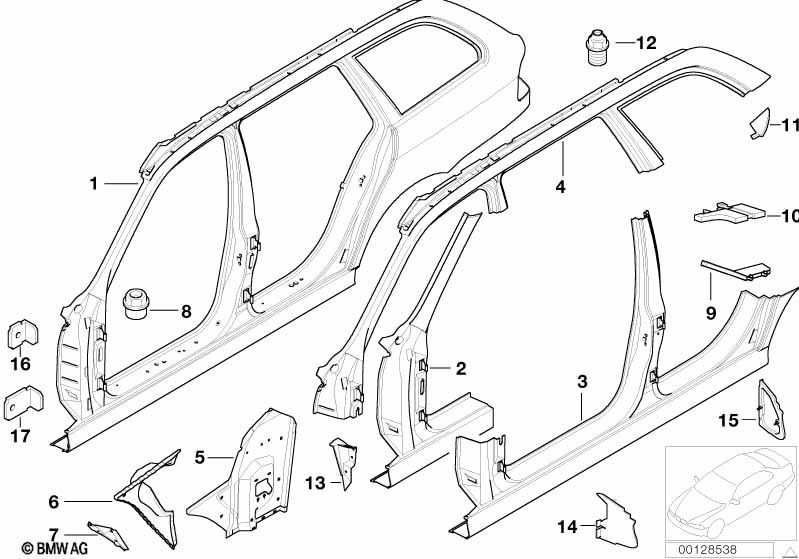

5' E39 530d Body-side frame

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
ITS - Head airbag

S262A=Yes
01 Body-side frame left 1 09/1997 41008158001 $1222.00
01 Body-side frame right 1 09/1997 41008158002 $1222.00
02 Left exterior column A 1 41008252553 $664.43
02 Column A exterior right 1 41008252554 $664.43
03 Column B with left rocker panel 1 41008205621 $849.60
03 Column B with right rocker panel 1 41008205622 $849.60
For vehicles with
ITS - Head airbag

S262A=Yes
04 Roof frame left 1 09/1997 41008158003 $577.53 ENDED
04 Right roof frame 1 09/1997 41008158004 $546.84 ENDED
05 Left interior column A 1 41118203519 $49.31
05 Right interior column A 1 41118203520 $49.31
06 Connection plate left 1 41118203523 $18.17
06 Connection plate right 1 41118203524 $18.17
07 Covering plate left 1 41118203525 $7.83
07 Covering plate right 1 41118203526 $7.83
08 Blind rivet nut, flat headed M5 4 61136954561 $0.63
09 Moulded part f entrance 2 41218216189 $8.89
10 Molded part column C, exterior 2 41218216191 $5.36
11 Molded part column D 2 41218216197 $12.61
Mounting for
Roof rack system
12 Threaded plug M10/M6 4 41318199941 $3.48
13 Left dashboard bracket 1 41138158249 $5.77
13 Right dashboard bracket 1 41138158250 $5.16
14 Molded part f entrance front 2 41218184545 $8.02
15 Molded part f entrance rear 2 41218203781 $8.02
16 Bracket, side panel, top 2 41218186756 $3.40
17 Fender bracket 4 41218164019 $5.40
Notes
  • ENDED = the part has been discontinued (no longer available).
