5' E39 530d Single components for body-side frame

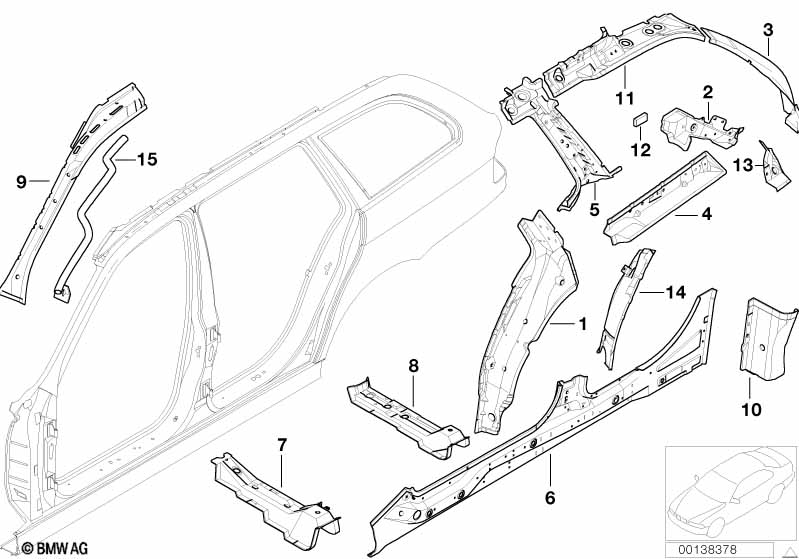

Single components for body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Reinforcement left 1 41218216083 $114.23 ENDED
01 Reinforcement right 1 41218216084 $114.23
02 Left exterior column C 1 41218216085 $133.54
02 Right exterior column C 1 41218216086 $133.54
03 Left interior column D 1 41218216087 $136.52
03 Right interior column D 1 41218216088 $120.43
04 Left railing reinforcement 1 41218216089 $125.78
04 Right railing reinforcement 1 41218216090 $125.78
05 Left interior column C 1 41218216081 $73.86 ENDED
05 Right interior column C 1 41218216082 $73.86
06 Left side member 1 41118208915 $128.14
06 Right side member 1 41118208916 $128.14
07 Left front seat console 1 41118208911 $54.22
07 Right front seat console 1 41118208912 $56.68
08 Left rear seat console 1 41118208913 $54.22 ENDED
08 Right rear seat console 1 41118208914 $54.22
09 Inner left apron 1 41218252597 $56.93
09 Inner right apron 1 41218252598 $56.93
10 Covering plate left 1 41148209471 $13.68
10 Covering plate right 1 41148209472 $13.68
For vehicles with
ITS - Head airbag

S262A=Yes
11 Left rear interior roof frame 1 41218240539 $165.17 ENDED
11 Right REAR INTERIOR ROOF FRAME 1 41218240540 $165.17 ENDED
12 Moulded part f column C, interior left 1 41218216193 $5.30 ENDED
12 Molded part f column C, interior right 1 41218216194 $5.30
13 reinforcement D-pillar inside left 1 41218250385 $6.30
13 reinforcement D-pillar inside right 1 41218250386 $6.30
14 Reinforcement column C inside left 1 41117009915 $54.22 ENDED
14 Reinforcement column C inside right 1 41117009916 $54.22 ENDED
15 Outlet pipe, left 1 41118165633 $17.09
15 Outlet pipe, right 1 41118165634 $17.09
Notes
  • ENDED = the part has been discontinued (no longer available).
