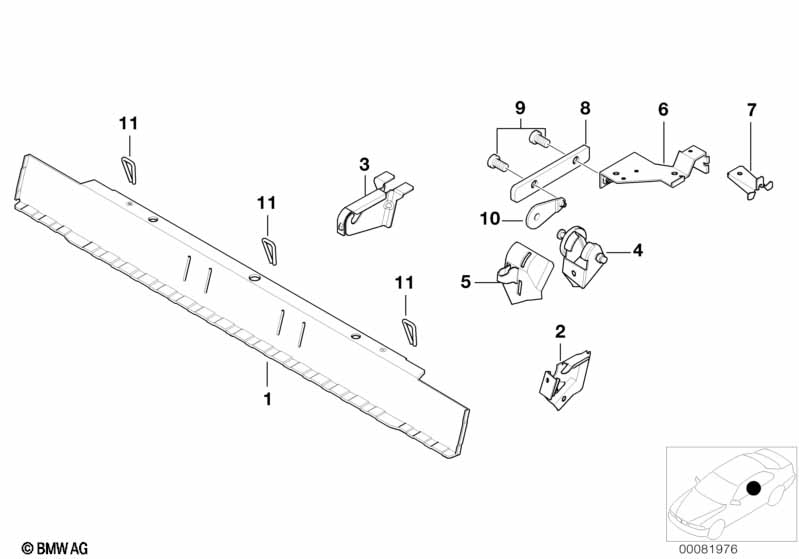

5' E39 530d Floor parts rear interior
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross member floor panel front | 1 | 41118209468 | $128.33 | |||||
| 02 | Bracket backrest outer right | 1 | 41118209487 | $6.05 | ENDED | ||||
| 02 | Bracket backrest inner right | 1 | 41118209488 | $4.62 | ENDED | ||||
| 03 | Centre backrest bearing bracket | 1 | 41118209478 | $9.44 | ENDED | ||||
| 04 | Bracket backrest outer left | 1 | 41118209491 | $21.62 | ENDED | ||||
| 04 | Bracket backrest outer right | 1 | 41118209492 | $21.62 | ENDED | ||||
| 05 | Support f right lateral upholstery | 1 | 41108209494 | $3.79 | |||||
| 05 | Support f left lateral upholstery | 1 | 01/1998 | 41108209493 | $3.79 | ||||
| 06 | Left support f roll.blind sight protect. | 1 | 41148209489 | $5.78 | ENDED | ||||
| 06 | Right support f roll.blind sight protect | 1 | 41148209490 | $7.15 | |||||
| 07 | Trim panel bracket | 2 | 41218185061 | $3.14 | ENDED | ||||
| 08 | Strain relief left | 1 | 51718217257 | $0.85 | ENDED | ||||
| 09 | Torx bolt | 7/16 UNF-2A | 2 | 07149153503 | $1.05 | ||||
| 10 | Support f strain relief | 1 | 51718240977 | $1.72 | ENDED |
Notes
- ENDED = the part has been discontinued (no longer available).
