5' E39 530d Trunk lid/closing system

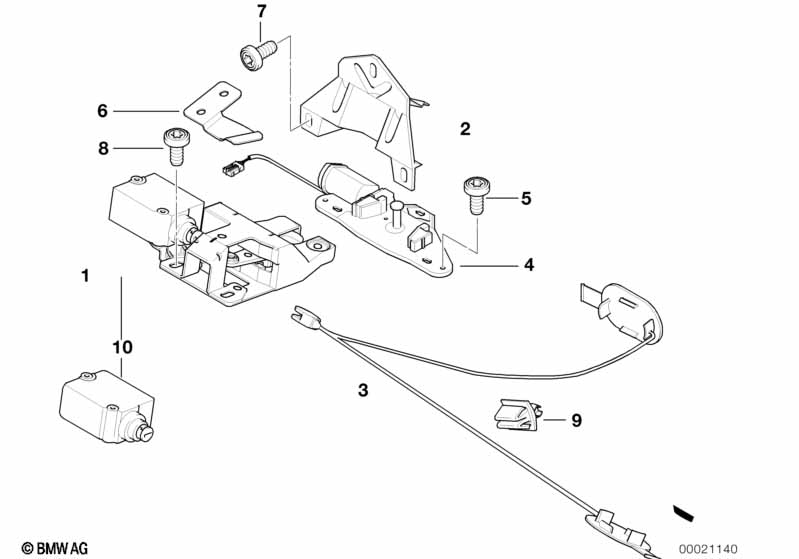

Trunk lid/closing system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trunk lid lock 1 51248168892 $95.92
02 Trunk lid lock bracket 1 51248200700
03 Pulling strip f emergency mechanism 1 51248232520 $2.82
04 Trunk lid power lock drive 1 67108362371
05 Torx-bolt with washer ISA M6X21 3 51248182364 $1.27
06 Cable holder D=12,8MM 2 61131267476 $0.42
07 Torx-bolt with washer ISA M6X9 3 12/2003 51238165044 $0.44 ENDED
07 Torx-bolt with washer M6X12 3 07146985055 $0.38
08 Torx-bolt with washer ISA M6X9 3 12/2003 51238165044 $0.44 ENDED
08 Torx-bolt with washer M6X12 3 07146985055 $0.38
09 Clamp 1 51228202809 $0.50
10 Actuator f trunk lid 1 67118368196 $86.30
Notes
  • ENDED = the part has been discontinued (no longer available).
