5' E39 530d Trunk lid hydraulic parts

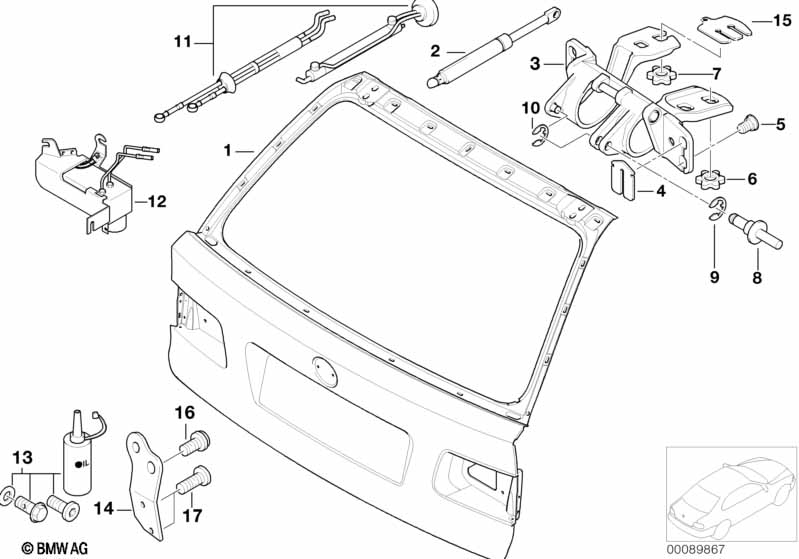

Trunk lid hydraulic parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trunk lid 1 41627007396 $673.07
02 Gas pressurized spring 1600N 1 51248220072 $67.93
03 Left trunk lid hinge 1 41617007403 $116.74
03 Right trunk lid hinge 1 41628227946 $111.00
04 Shim 1.0MM X 41628226060 $2.00
05 Torx-bolt with washer ISA M8X22 8 41628199932 $0.93
06 Star-shaped nut ASA M8 4 41628208439 $1.15
07 Star-shaped nut ASA M8 4 41628208439 $1.15
08 Pin 1 51248205062 $2.18
only applies to
LEFT TRUNK LID HINGE
08 Double pin 1 51247004890 $18.45
09 Circlip 6,0 2 07119901421 $0.09
10 Circlip 6,0 2 07119901421 $0.09
11 Hydraulic cylinder 1 51247015853 $281.73 ENDED
12 Hydro unit 1 51247015684 $663.57 ENDED
13 Hollow bolt set 1 51247015854 $51.06
CONSISTING OF
HOLLOW BOLT
SCREW PLUG
GASKET
small oil bottle
14 Inclination indicator bracket 1 51247004881 $6.27
15 Shim 1.0MM X 51248219000 $1.85
16 Torx bolt 4,8X13 1 51418119726 $0.22
17 Torx-bolt for plastic material ISA L=10MM 2 12/2003 65758235255 $0.10 ENDED
17 Screw TS4X10MM 2 07129907533
Notes
  • ENDED = the part has been discontinued (no longer available).
