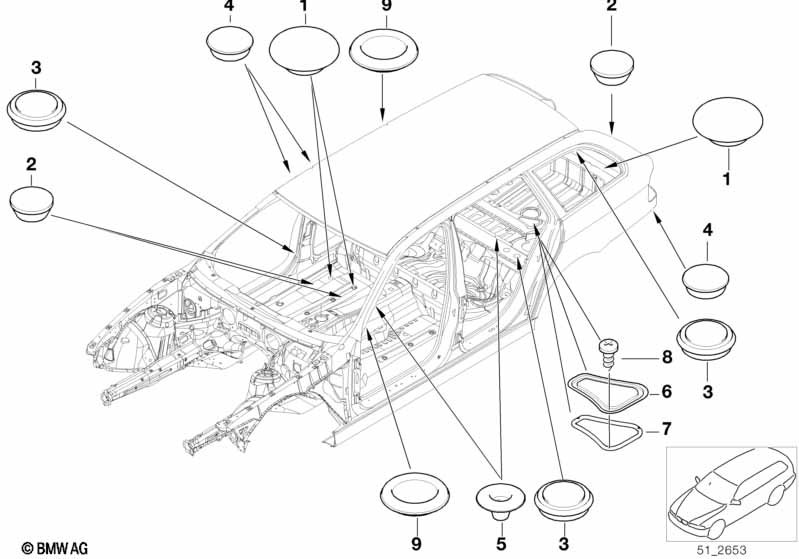

5' E39 530d Sealing cap/plug

Sealing cap/plug
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i D = hole-circle diameter in the
body
01 Blind plug D=20MM X 07147140850 $0.19
02 Blind plug D=12MM 7 51718110199 $0.18
03 Blind plug D=35MM 2 12/2003 51710141026 $0.81 ENDED
03 Blind plug D=35MM 2 12/2003 07140404682 $0.63 ENDED
03 Blind plug D=35MM 2 07147140849 $0.73
04 Blind plug D=25MM 6 02/1990 51710026750 ENDED
04 Blind plug D=25MM 6 51718126605 $0.39
05 Blind plug D=8MM 4 51718204406 $0.18
06 Locking plug left 1 51718189661 $1.95
06 Locking plug right 1 51718189662 $1.95
07 Gasket 2 51718204376 $1.00
08 Fillister head self-tapping screw ST4,8X13 6 07119907786 $0.11
09 Blind plug D=28MM 2 51718138511 $0.69
Notes
  • ENDED = the part has been discontinued (no longer available).
