5' E39 530d Sealing cap/plug

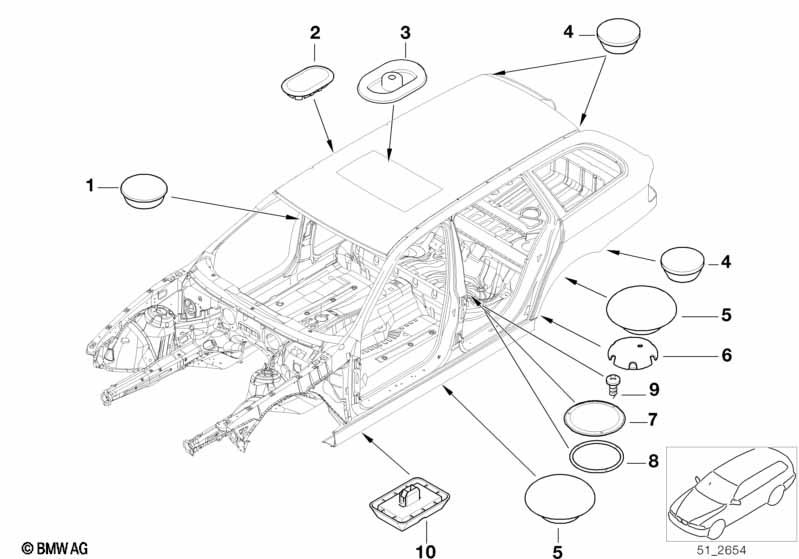

Sealing cap/plug
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i D = hole-circle diameter in the
body
01 Blind plug D=25MM 4 02/1990 51710026750 ENDED
01 Blind plug D=25MM 4 51718126605 $0.39
02 Blind plug D=18X36MM 2 51718233416 $0.56
03 Blind plug D=25X45MM 2 51718226005 $0.79
04 Blind plug D=12MM 4 51718110199 $0.18
05 Blind plug D=20MM X 07147140850 $0.19
05 Blind plug D=17MM 1 51221924979 $1.10
06 Blind plug D=19MM 2 03/1994 51710141035 $0.48 ENDED
06 Blind plug D=20MM 2 51718174490 $0.56
07 Cover lid 2 51718191200 $2.58
08 Gasket 2 51718191201 $0.97
09 Fillister head self-tapping screw ST4,8X13 6 07119907786 $0.11
10 Support lifting platform 4 51717001650 $14.75
Notes
  • ENDED = the part has been discontinued (no longer available).
