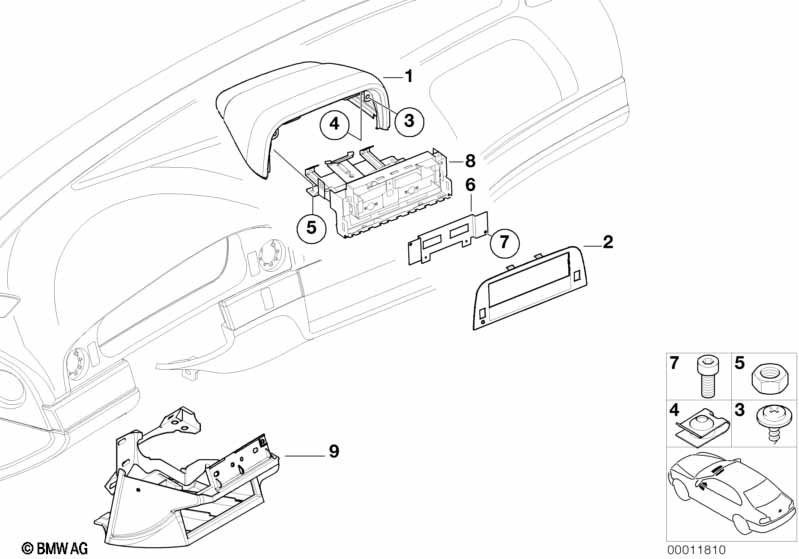

5' E39 530d Taximeter mounting parts

Taximeter mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Taximeter trim panel SCHWARZ 1 51457143443
02 Taximeter front panel small SCHWARZ 1 51458210434
02 Taximeter front panel big SCHWARZ 1 51458210435
03 Fillister head self-tapping screw ST4,8X16 2 07147137416 $0.20
04 Body nut ST 4,8 2 01/2000 07129904222 $0.11 ENDED
04 Plug-in nut M5 2 46637651465 $1.29
05 Hex nut BM5 4 12/2003 07129900906 ENDED
05 Hex nut M5 4 07129906048 $0.73
06 Taximeter adapter small 1 51458210438 +core
07 Fillister-head screw M3X8 3 07119900255 $0.62
08 Instrument carrier f taximeter 1 51458210511 ENDED, +core
09 Trim panel dashboard lower left SCHWARZ 1 09/1998 51458210721 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
