5' E39 530d Parts f subwooferbox hifi/top-hifi

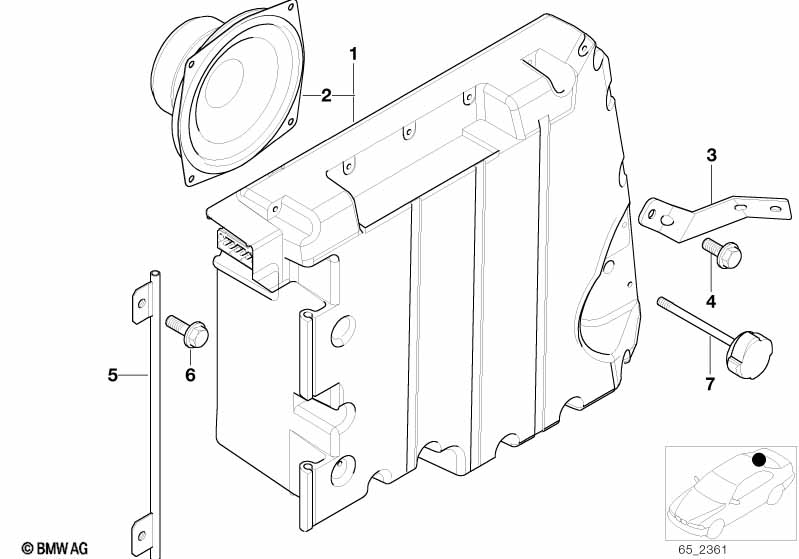

Parts f subwooferbox hifi/top-hifi
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
HiFi speaker system
or
HiFi System Professional DSP

S676A=Yes

S677A=Yes
For vehicles with
HiFi speaker system

S676A=Yes
01 Subwoofer box HiFi System 1 65136910371 $442.32
For vehicles with
HiFi System Professional DSP

S677A=Yes
01 Subwooferbox top-hifi system 1 65138362176 $442.32
For vehicles with
HiFi speaker system

S676A=Yes
02 Subwoofer HiFi System 1 65138389849 $76.53
For vehicles with
HiFi System Professional DSP

S677A=Yes
02 Subwoofer top-hifi system 1 65138369266 $76.53
03 Subwooferbox holder 1 04/1997 65128372076
03 Subwooferbox holder 1 04/1997 65128379379 $5.98
04 Hex bolt with washer M6X12-Z2 1 04/1997 07119915060 $0.25 ENDED
04 Hex bolt with washer M6X12-U2-8.8 1 04/1997 07119904459 $0.65
04 Hex bolt with washer M6X12-U1-8.8 1 04/1997 07119904517 $0.36
05 Subwooferbox holder 1 65128372433 $15.56
06 Hex bolt with washer M5X14-Z1 2 01/2003 07119913415 $0.25 ENDED
06 Hex bolt M5X14 2 07119904337 $0.38
07 Lock 1 65138375274 $14.02
Notes
  • ENDED = the part has been discontinued (no longer available).
