5' E39 530d Ind.series 30 years BMW M, KA127,1. part

Ind.series 30 years BMW M, KA127,1. part
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only applies to
individual vehicles with upholstery
code Z1XX
or
SA 940 = option in general
---------------------------
Leather Walknappa ecru
Trim and hardware concerned:
-Seats, door trim panels, center console
-Dashboard covering
-Glove box, column B
---------------------------
Remaining interior trim like: N6SW
---------------------------
Strips and covers in special wood
see illustration 91_0129
---------------------------
Seats and door trim panels
see figure 91_0607

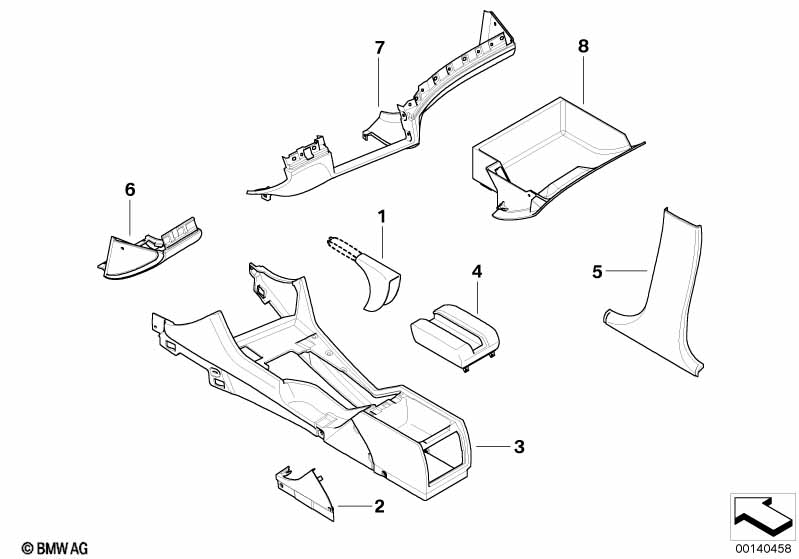

Leather handbrake lever cover
01 Leather handbrake lever cover ECRU 1 02/2002 05/2002 34418023119 ENDED, NoS
Leather centre console cover
02 Cover center console ECRU 1 02/2002 05/2002 51168023121 ENDED, NoS
Center console, leather
03 Center console, leather ECRU 1 02/2002 05/2002 51168023120 ENDED, +core, NoS
CENTER ARM REST F TELEPHONE
04 Cntr arm rest, teleph. with slide unit ECRU 1 02/2002 05/2002 51168009114 ENDED, +core, NoS
Trim panel B-column, bottom
05 Covering column-center lower left ECRU 1 02/2002 05/2002 51438023129 ENDED, NoS
05 Trim panel, right lower centre column ECRU 1 02/2002 05/2002 51438023130 ENDED, NoS
TRIM PANEL DASHBOARD LOWER LEFT
06 Trim panel dashboard lower left ECRU 1 02/2002 05/2002 51458023131 ENDED, NoS
Trim piece for dashboard lower section
07 Trim panel dashboard LOWER ECRU 1 02/2002 05/2002 51458023122 ENDED, NoS
GLOVE BOX
08 Glove box, leather ERCU 1 02/2002 05/2002 51168023132 ENDED, NoS
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part, central, not in stock.)
  • +core = plus core charge (possibility of a return of the old part)
