5' E39 530d Ind.series 30 years BMW M, KA127,2. part

Ind.series 30 years BMW M, KA127,2. part

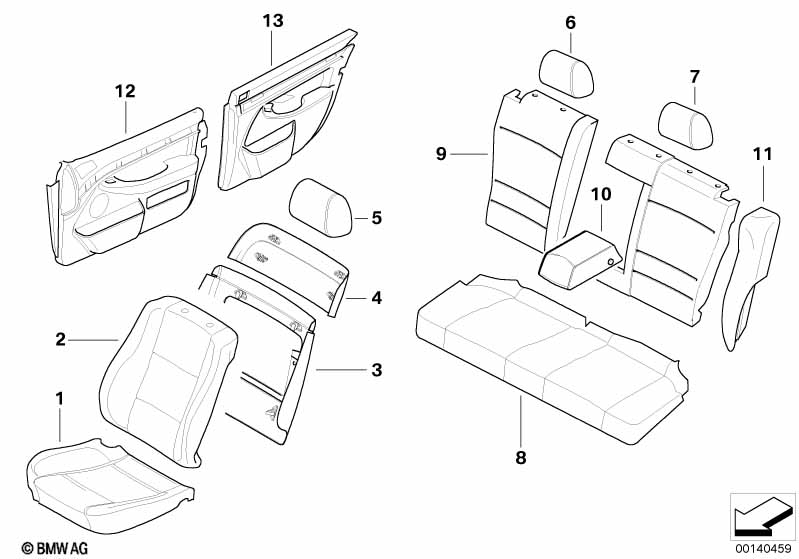

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only applies to
individual vehicles with upholstery
code Z1XX
or
SA 940 = option in general
---------------------------
Leather Walknappa ecru
Trim and hardware concerned:
-Seats, door trim panels, center console
-Dashboard covering
-Glove box, column B
---------------------------
Remaining interior trim like: N6SW
---------------------------
Strips and covers in special wood
see illustration 91_0129
---------------------------
Instrument panel trim, center console,
glove box and B-pillar, see
illustration 91_
0606
For vehicles with
SA 456 = comfort seat
Leather seat cover, nappa

=Yes
01 Seat cover leather ECRU 2 02/2002 05/2002 52108023134 ENDED, NoS
For vehicles with
SA 456 = comfort seat
Leatehr backrest cover, nappa

=Yes
02 Cover backrest, leather ECRU 2 02/2002 05/2002 52108023135 ENDED, NoS
For vehicles with
SA 456 = comfort seat
Lower rear panel

=Yes
03 Lower rear panel ECRU 2 02/2002 05/2002 52108009086 ENDED, +core, NoS
For vehicles with
SA 456 = comfort seat
UPPER REAR PANEL

=Yes
04 Upper rear panel ECRU 2 02/2002 05/2002 52108009085 ENDED, +core, NoS
For vehicles with
SA 456 = comfort seat
headrest front, comfort seat

=Yes
05 Headrest leather ECRU 2 02/2002 05/2002 52108023133 ENDED, +core, NoS
Headrest rear lateral
06 Headrest leather ECRU 2 02/2002 05/2002 52208023136 ENDED, +core, NoS
Headrest rear center-seat
07 Headrest leather ECRU 1 02/2002 05/2002 52208023137 ENDED, +core, NoS
Seat cover ISOFIX
08 Seat cover leather ECRU 1 02/2002 05/2002 52208023138 ENDED, NoS
Cover backrest, rear
09 Cover backrest leather left ECRU 1 02/2002 05/2002 52208023139 ENDED, NoS
09 Cover backrest leather right ECRU 1 02/2002 05/2002 52208023140 ENDED, NoS
CENTER ARMREST REAR
10 Armrest rear, leather ECRU 1 02/2002 05/2002 52208014767 ENDED, NoS
Side section ISOFIX
11 Lateral trim panel left ECRU 1 02/2002 05/2002 52208023141 ENDED, +core, NoS
11 Lateral trim panel right ECRU 1 02/2002 05/2002 52208023142 ENDED, +core, NoS
For vehicles with
Side airbag
Door trim panel, front / airbag

=Yes
12 Door trim panel, front left / airbag SCHWARZ/ECRU 1 02/2002 05/2002 51418023123 ENDED, NoS
12 Door trim panel, front right / airbag SCHWARZ/ECRU 1 02/2002 05/2002 51418023124 ENDED, NoS
For vehicles with
Roller sun vizor, rear door
and
High gloss shadow line
Door trim, rear

S417A=Yes

S760A=Yes
13 Door trim panel, rear, left SCHWARZ/ECRU 1 02/2002 05/2002 51428023125 ENDED, NoS
13 Door trim panel, rear, right SCHWARZ/ECRU 1 02/2002 05/2002 51428023126 ENDED
For vehicles with
Side airbags for rear passengers
and
Roller sun vizor, rear door
and
High gloss shadow line
Door trim, rear

S261A=Yes

S417A=Yes

S760A=Yes
13 Door trim panel, rear, right SCHWARZ/ECRU 1 02/2002 05/2002 51428023126 ENDED, NoS
13 Door trim panel, rear, left, airbag SCHWARZ/ECRU 1 02/2002 05/2002 51428023127 ENDED, NoS
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part, central, not in stock.)
  • +core = plus core charge (possibility of a return of the old part)
