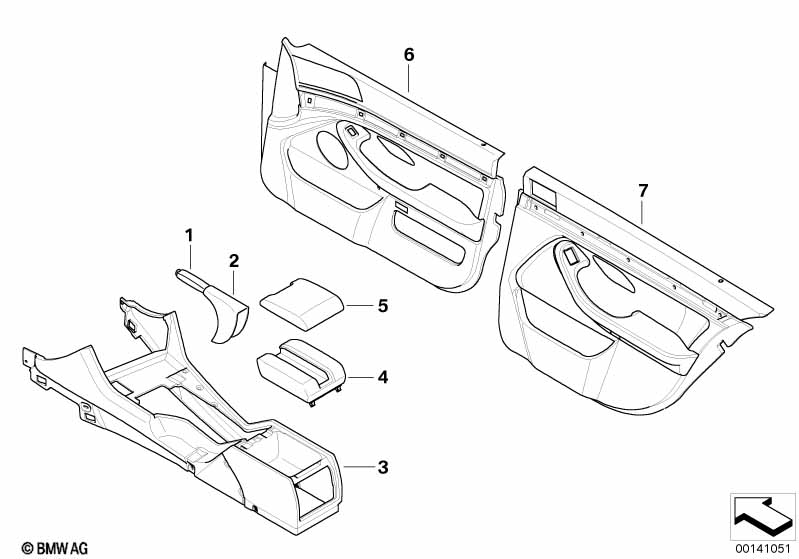

5' E39 530d Individual series Le Mans/Sterling KA130

Individual series Le Mans/Sterling KA130
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only applies to
individual vehicles with upholstery
code Z1XX
or
SA 940 = option in general
---------------------------
Variant 1 "Le Mans":
- Montana leather, black, contrast
stitching in cornflower blue
Trim parts:
- Door trim panels, center armrest
- Center console, handbrake lever
Remaining interior trim:
- N6SW Montana leather, black
---------------------------
Variants 2 a/b "Sterling":
- Montana leather, black,
contrast stitching in gray
Trim parts:
- Door trim panels, center armrest
- Center console, handbrake lever
Remaining interior trim:
- N6SW Montana leather, black
---------------------------
Steering wheels, see figure 91_0079
---------------------------
for floor mats, see figure 91_0449
Handbrake lever
01 Leather handbrake lever SW/KORNBLAU 1 03/2002 08/2002 34418023601 ENDED, NoS
01 Leather handbrake lever SCHWARZ/GRAU 1 03/2002 08/2002 34418023623 ENDED, NoS
Leather handbrake lever cover
02 Leather handbrake lever cover SW/KORNBLAU 1 03/2002 08/2002 34418023603 ENDED, NoS
02 Leather handbrake lever cover SCHWARZ/GRAU 1 03/2002 08/2002 34418023625 ENDED, NoS
Center console, leather
03 Centre cons. leather w contr. stitching SW/KORNBLAU 1 03/2002 08/2002 51168023605 ENDED, +core, NoS
03 Centre cons. leather w contr. stitching SCHWARZ/GRAU 1 03/2002 08/2002 51168023627 ENDED, +core, NoS
CENTER ARM REST F TELEPHONE
04 Cntr arm rest, teleph. with slide unit SW/KORNBLAU 1 03/2002 08/2002 51168023219 $450.86 ENDED, NoS
04 Cntr arm rest, teleph. with slide unit SCHWARZ/GRAU 1 03/2002 08/2002 51168023217 ENDED, +core, NoS
Center arm rest
05 Center arm rest SW/KORNBLAU 1 03/2002 08/2002 51168023218 ENDED, +core, NoS
05 Center arm rest SCHWARZ/GRAU 1 03/2002 08/2002 51168023216 ENDED, +core, NoS
For vehicles with
Side airbag for driver/passenger
Leather trim

S260A=Yes
06 Door trim panel, front left / airbag SW/KORNBLAU 1 03/2002 08/2002 51418023607 ENDED, NoS
06 Door trim panel, front right / airbag SW/KORNBLAU 1 03/2002 08/2002 51418023608 ENDED, NoS
06 Door trim panel, front left / airbag SCHWARZ/GRAU 1 03/2002 08/2002 51418023629 $1194.12 ENDED, NoS
06 Door trim panel, front right / airbag SCHWARZ/GRAU 1 03/2002 08/2002 51418023630 $1194.12 ENDED, NoS
Door trim, rear
Leather trim
07 Door trim panel, rear, left SW/KORNBLAU 1 03/2002 08/2002 51428023611 ENDED, NoS
07 Door trim panel, rear, right SW/KORNBLAU 1 03/2002 08/2002 51428023612 ENDED, NoS
07 Door trim panel, rear, left SCHWARZ/GRAU 1 03/2002 08/2002 51428023633 ENDED, NoS
07 Door trim panel, rear, right SCHWARZ/GRAU 1 03/2002 08/2002 51428023634 ENDED, NoS
For vehicles with
Side airbags for rear passengers
Leather trim

S261A=Yes
07 Door trim panel, rear, left, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023617 $1082.52 ENDED, NoS
07 Door trim panel, rear, right, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023618 $1082.52 ENDED, NoS
07 Door trim panel, rear, left, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023639 ENDED, NoS
07 Door trim panel, rear, right, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023640 ENDED, NoS
For vehicles with
Roller sun vizor, rear lateral
or
Roller sun vizor, rear door
Leather trim

S416A=Yes

S417A=Yes
07 Door trim panel, rear, left SW/KORNBLAU 1 03/2002 08/2002 51428023613 ENDED, NoS
07 Door trim panel, rear, right SW/KORNBLAU 1 03/2002 08/2002 51428023614 ENDED, NoS
07 Door trim panel, rear, left SCHWARZ/GRAU 1 03/2002 08/2002 51428023635 ENDED, NoS
07 Door trim panel, rear, right SCHWARZ/GRAU 1 03/2002 08/2002 51428023636 ENDED, NoS
For vehicles with
Side airbags for rear passengers
and
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
Leather trim

S261A=Yes

S416A=Yes

S417A=No
07 Door trim panel, rear, left, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023619 ENDED
07 Door trim panel, rear, right, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023620 ENDED
07 Door trim panel, rear, left, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023641 ENDED
07 Door trim panel, rear, right, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023642 ENDED
For vehicles with
Side airbags for rear passengers
and
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
Leather trim

S261A=Yes

S416A=No

S417A=Yes
07 Door trim panel, rear, left, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023619 ENDED, NoS
07 Door trim panel, rear, right, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023620 ENDED, NoS
07 Door trim panel, rear, left, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023641 ENDED, NoS
07 Door trim panel, rear, right, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023642 ENDED, NoS
For vehicles with
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
and
Shadow-Line
and
High gloss shadow line
Leather trim

S416A=Yes

S417A=No

S339A=Yes

S760A=No
07 Door trim panel, rear, left SW/KORNBLAU 1 03/2002 08/2002 51428023615 ENDED
07 Door trim panel, rear, right SW/KORNBLAU 1 03/2002 08/2002 51428023616 ENDED
07 Door trim panel, rear, left SCHWARZ/GRAU 1 03/2002 08/2002 51428023637 ENDED
07 Door trim panel, rear, right SCHWARZ/GRAU 1 03/2002 08/2002 51428023638 ENDED
For vehicles with
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
and
Shadow-Line
and
High gloss shadow line
Leather trim

S416A=Yes

S417A=No

S339A=No

S760A=Yes
07 Door trim panel, rear, left SW/KORNBLAU 1 03/2002 08/2002 51428023615 ENDED
07 Door trim panel, rear, right SW/KORNBLAU 1 03/2002 08/2002 51428023616 ENDED
07 Door trim panel, rear, left SCHWARZ/GRAU 1 03/2002 08/2002 51428023637 ENDED
07 Door trim panel, rear, right SCHWARZ/GRAU 1 03/2002 08/2002 51428023638 ENDED
For vehicles with
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
and
Shadow-Line
and
High gloss shadow line
Leather trim

S416A=No

S417A=Yes

S339A=Yes

S760A=No
07 Door trim panel, rear, left SW/KORNBLAU 1 03/2002 08/2002 51428023615 ENDED
07 Door trim panel, rear, right SW/KORNBLAU 1 03/2002 08/2002 51428023616 ENDED
07 Door trim panel, rear, left SCHWARZ/GRAU 1 03/2002 08/2002 51428023637 ENDED
07 Door trim panel, rear, right SCHWARZ/GRAU 1 03/2002 08/2002 51428023638 ENDED
For vehicles with
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
and
Shadow-Line
and
High gloss shadow line
Leather trim

S416A=No

S417A=Yes

S339A=No

S760A=Yes
07 Door trim panel, rear, left SW/KORNBLAU 1 03/2002 08/2002 51428023615 ENDED, NoS
07 Door trim panel, rear, right SW/KORNBLAU 1 03/2002 08/2002 51428023616 ENDED, NoS
07 Door trim panel, rear, left SCHWARZ/GRAU 1 03/2002 08/2002 51428023637 ENDED, NoS
07 Door trim panel, rear, right SCHWARZ/GRAU 1 03/2002 08/2002 51428023638 ENDED, NoS
For vehicles with
Side airbags for rear passengers
and
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
and
Shadow-Line
and
High gloss shadow line
Door trim, rear
Leather trim

S261A=Yes

S416A=Yes

S417A=No

S339A=Yes

S760A=No
07 Door trim panel, rear, left, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023621 ENDED
07 Door trim panel, rear, right, airbag SW/KORNGRAU 1 03/2002 08/2002 51428023622 ENDED
07 Door trim panel, rear, left, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023643 $1082.52 ENDED
07 Door trim panel, rear, right, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023644 $1082.52 ENDED
For vehicles with
Side airbags for rear passengers
and
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
and
Shadow-Line
and
High gloss shadow line
Door trim, rear
Leather trim

S261A=Yes

S416A=Yes

S417A=No

S339A=No

S760A=Yes
07 Door trim panel, rear, left, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023621 ENDED
07 Door trim panel, rear, right, airbag SW/KORNGRAU 1 03/2002 08/2002 51428023622 ENDED
07 Door trim panel, rear, left, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023643 $1082.52 ENDED
07 Door trim panel, rear, right, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023644 $1082.52 ENDED
For vehicles with
Side airbags for rear passengers
and
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
and
Shadow-Line
and
High gloss shadow line
Door trim, rear
Leather trim

S261A=Yes

S416A=No

S417A=Yes

S339A=Yes

S760A=No
07 Door trim panel, rear, left, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023621 ENDED
07 Door trim panel, rear, right, airbag SW/KORNGRAU 1 03/2002 08/2002 51428023622 ENDED
07 Door trim panel, rear, left, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023643 $1082.52 ENDED
07 Door trim panel, rear, right, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023644 $1082.52 ENDED
For vehicles with
Side airbags for rear passengers
and
Roller sun vizor, rear lateral
and
Roller sun vizor, rear door
and
Shadow-Line
and
High gloss shadow line
Door trim, rear
Leather trim

S261A=Yes

S416A=No

S417A=Yes

S339A=No

S760A=Yes
07 Door trim panel, rear, left, airbag SW/KORNBLAU 1 03/2002 08/2002 51428023621 ENDED, NoS
07 Door trim panel, rear, right, airbag SW/KORNGRAU 1 03/2002 08/2002 51428023622 ENDED, NoS
07 Door trim panel, rear, left, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023643 $1082.52 ENDED, NoS
07 Door trim panel, rear, right, airbag SCHWARZ/GRAU 1 03/2002 08/2002 51428023644 $1082.52 ENDED, NoS
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part, central, not in stock.)
  • +core = plus core charge (possibility of a return of the old part)
