5' E39 530d Individual series, Germany KA175 Part 1
Sponsored links
Sponsored links

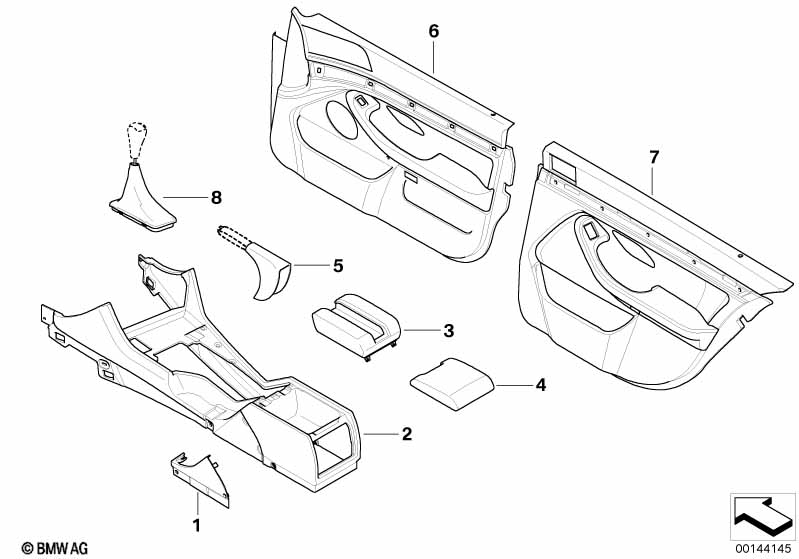

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general --------------------------- Variant 1: - Leather, felted nappa, cinnamon Trim parts: - Seats, trim piece for center console with contrast quilting in black: - Door trim panels, center armrest - Center console, handbrake lever - Shift and selector lever bellows Remaining interior equipment: - N6SW leather Montana black --------------------------- Variant 2: - Leather, felted nappa, dark gray partially with leather, felted nappa, gray Trim parts: - Seats, trim piece for center console - Door trim panels, center armrest - Center console, handbrake lever - Shift and selector lever bellows Remaining interior equipment: - N6SW Montana leather, black --------------------------- Strips and covers in special wood see illustration 91_0129 --------------------------- Steering wheel, see illustration 91_0079 --------------------------- Seats, see screen 91_0653 --------------------------- Rubber boot for shift lever, see illustration 91_0046 --------------------------- for floor mats, see figure 91_0449 |
||||||||
| Leather centre console cover | |||||||||
| 01 | Cover center console | ZIMT | 1 | 05/2003 | 51168025662 | $55.52 | ENDED, NoS | ||
| 01 | Cover center console | DUNKELGRAU | 1 | 05/2003 | 51168027819 | ENDED, NoS | |||
| Center console, leather | |||||||||
| 02 | Centre cons. leather w contr. stitching | ZIMT/SCHWARZ | 1 | 05/2003 | 51168025661 | $951.39 | ENDED, NoS | ||
| 02 | Center console, leather | DUNKELGRAU | 1 | 05/2003 | 51168027818 | $951.39 | ENDED, +core, NoS | ||
| CENTER ARM REST F TELEPHONE | |||||||||
| 03 | Center arm rest | DUNKELGRAU | 1 | 05/2003 | 51168015875 | $566.37 | ENDED, NoS | ||
| 03 | Cntr arm rest, teleph. with slide unit | ZIMT/SCHWARZ | 1 | 05/2003 | 51168025975 | $450.86 | ENDED, NoS | ||
| Center arm rest | |||||||||
| 04 | Cntr arm rest, teleph. with slide unit | DUNKELGRAU | 1 | 05/2003 | 51168015876 | $566.37 | ENDED, +core, NoS | ||
| 04 | Center arm rest | ZIMT/SCHWARZ | 1 | 05/2003 | 51168025974 | ENDED, +core, NoS | |||
| Leather handbrake lever cover | |||||||||
| 05 | Leather handbrake lever cover | ZIMT/SCHWARZ | 1 | 05/2003 | 34418025660 | $63.61 | ENDED, NoS | ||
| 05 | Leather handbrake lever cover | DUNKELGRAU | 1 | 05/2003 | 34418027817 | ENDED, NoS | |||
| For vehicles with Side airbag for driver/passenger Door trim panel, front / airbag |
S260A=Yes |
||||||||
| 06 | Door trim panel, front left / airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51418025685 | $1132.74 | ENDED, NoS | ||
| 06 | Door trim panel, front right / airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51418025686 | $1132.74 | ENDED, NoS | ||
| 06 | Door trim panel, front left / airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51418027841 | $970.92 | ENDED, NoS | ||
| 06 | Door trim panel, front right / airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51418027842 | $1194.12 | ENDED, NoS | ||
| Door trim, rear | |||||||||
| 07 | Door trim panel, rear, left | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025687 | $912.33 | ENDED, NoS | ||
| 07 | Door lining leather rear right | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025688 | ENDED, NoS | |||
| 07 | Door lining leather rear left | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027843 | $733.77 | ENDED, NoS | ||
| 07 | Door lining leather rear right | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027844 | $733.77 | ENDED, NoS | ||
| For vehicles with Side airbags for rear passengers Door trim, rear |
S261A=Yes |
||||||||
| 07 | Door trim panel, rear, left, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025693 | $943.02 | ENDED, NoS | ||
| 07 | Door trim panel, rear, right, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025694 | $943.02 | ENDED, NoS | ||
| 07 | Door trim panel, rear, left, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027849 | ENDED, NoS | |||
| 07 | Door trim panel, rear, right, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027850 | ENDED, NoS | |||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door Door trim, rear |
S416A=Yes S417A=Yes |
||||||||
| 07 | Door trim panel, rear, left | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025689 | $1051.83 | ENDED, NoS | ||
| 07 | Door trim panel, rear, right | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025690 | ENDED, NoS | |||
| 07 | Door lining leather rear left | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027845 | ENDED, NoS | |||
| 07 | Door lining leather rear right | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027846 | ENDED, NoS | |||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door Door trim, rear |
S261A=Yes S416A=Yes S417A=No |
||||||||
| 07 | Door trim panel, rear, left, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025695 | $943.02 | ENDED | ||
| 07 | Door trim panel, rear, right, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025696 | $943.02 | ENDED | ||
| 07 | Door trim panel, rear, left, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027851 | ENDED | |||
| 07 | Door trim panel, rear, right, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027852 | ENDED | |||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door Door trim, rear |
S261A=Yes S416A=No S417A=Yes |
||||||||
| 07 | Door trim panel, rear, left, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025695 | $943.02 | ENDED, NoS | ||
| 07 | Door trim panel, rear, right, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025696 | $943.02 | ENDED, NoS | ||
| 07 | Door trim panel, rear, left, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027851 | ENDED, NoS | |||
| 07 | Door trim panel, rear, right, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027852 | ENDED, NoS | |||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and Shadow-Line and High gloss shadow line Door trim, rear |
S416A=Yes S417A=No S339A=Yes S760A=No |
||||||||
| 07 | Door lining leather rear left | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025691 | $943.02 | ENDED | ||
| 07 | Door lining leather rear right | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025692 | $943.02 | ENDED | ||
| 07 | Door lining leather rear left | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027847 | ENDED | |||
| 07 | Door lining leather rear right | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027848 | ENDED | |||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and Shadow-Line and High gloss shadow line Door trim, rear |
S416A=Yes S417A=No S339A=No S760A=Yes |
||||||||
| 07 | Door lining leather rear left | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025691 | $943.02 | ENDED | ||
| 07 | Door lining leather rear right | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025692 | $943.02 | ENDED | ||
| 07 | Door lining leather rear left | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027847 | ENDED | |||
| 07 | Door lining leather rear right | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027848 | ENDED | |||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and Shadow-Line and High gloss shadow line Door trim, rear |
S416A=No S417A=Yes S339A=Yes S760A=No |
||||||||
| 07 | Door lining leather rear left | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025691 | $943.02 | ENDED | ||
| 07 | Door lining leather rear right | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025692 | $943.02 | ENDED | ||
| 07 | Door lining leather rear left | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027847 | ENDED | |||
| 07 | Door lining leather rear right | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027848 | ENDED | |||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and Shadow-Line and High gloss shadow line Door trim, rear |
S416A=No S417A=Yes S339A=No S760A=Yes |
||||||||
| 07 | Door lining leather rear left | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025691 | $943.02 | ENDED, NoS | ||
| 07 | Door lining leather rear right | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025692 | $943.02 | ENDED, NoS | ||
| 07 | Door lining leather rear left | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027847 | ENDED, NoS | |||
| 07 | Door lining leather rear right | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027848 | ENDED, NoS | |||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door and Shadow-Line and High gloss shadow line Door trim, rear |
S261A=Yes S416A=Yes S417A=No S339A=Yes S760A=No |
||||||||
| 07 | Door trim panel, rear, left, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025697 | ENDED | |||
| 07 | Door trim panel, rear, right, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025698 | ENDED | |||
| 07 | Door trim panel, rear, left, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027853 | $948.60 | ENDED | ||
| 07 | Door trim panel, rear, right, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027854 | $948.60 | ENDED | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door and Shadow-Line and High gloss shadow line Door trim, rear |
S261A=Yes S416A=Yes S417A=No S339A=No S760A=Yes |
||||||||
| 07 | Door trim panel, rear, left, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025697 | ENDED | |||
| 07 | Door trim panel, rear, right, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025698 | ENDED | |||
| 07 | Door trim panel, rear, left, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027853 | $948.60 | ENDED | ||
| 07 | Door trim panel, rear, right, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027854 | $948.60 | ENDED | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door and Shadow-Line and High gloss shadow line Door trim, rear |
S261A=Yes S416A=No S417A=Yes S339A=Yes S760A=No |
||||||||
| 07 | Door trim panel, rear, left, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025697 | ENDED | |||
| 07 | Door trim panel, rear, right, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025698 | ENDED | |||
| 07 | Door trim panel, rear, left, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027853 | $948.60 | ENDED | ||
| 07 | Door trim panel, rear, right, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027854 | $948.60 | ENDED | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door and Shadow-Line and High gloss shadow line Door trim, rear |
S261A=Yes S416A=No S417A=Yes S339A=No S760A=Yes |
||||||||
| 07 | Door trim panel, rear, left, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025697 | ENDED, NoS | |||
| 07 | Door trim panel, rear, right, airbag | SCHWARZ/ZIMT | 1 | 05/2003 | 51428025698 | ENDED, NoS | |||
| 07 | Door trim panel, rear, left, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027853 | $948.60 | ENDED, NoS | ||
| 07 | Door trim panel, rear, right, airbag | GRAU/DKLGRAU/SW | 1 | 05/2003 | 51428027854 | $948.60 | ENDED, NoS | ||
| Selector lever boot | |||||||||
| 08 | Leather boot with contrast stitching | ZIMT/SCHWARZ | 1 | 05/2003 | 25168025700 | ENDED, NoS | |||
| 08 | Leather boot | DUNKELGRAU | 1 | 05/2003 | 25168027816 | ENDED, NoS | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part, central, not in stock.)
- +core = plus core charge (possibility of a return of the old part)
