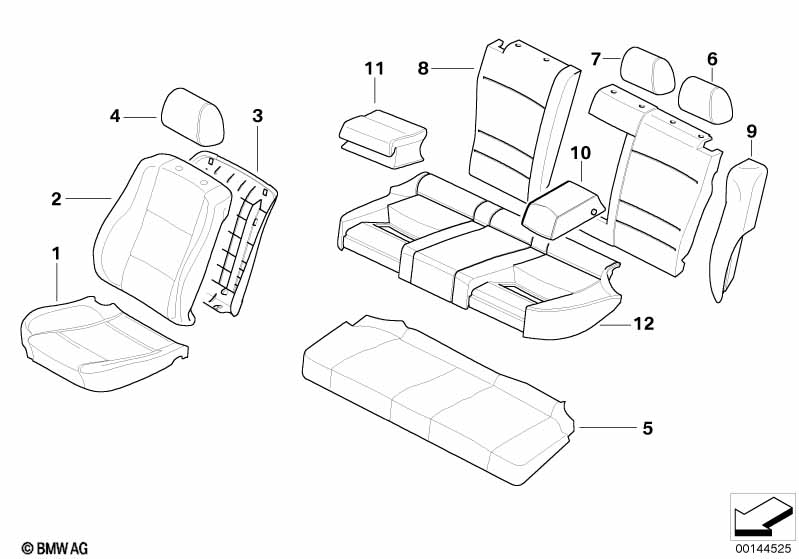

5' E39 530d Individual series, Germany KA175 Part 2
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general --------------------------- Variant 1: - Leather, felted nappa, cinnamon Trim parts: - Seats, trim piece for center console with contrast quilting in black: - Door trim panels, center armrest - Center console, handbrake lever - Shift and selector lever bellows Remaining interior equipment: - N6SW leather Montana black --------------------------- Variant 2: - Leather, felted nappa, dark gray partially with leather, felted nappa, gray Trim parts: - Seats, trim piece for center console - Door trim panels, center armrest - Center console, handbrake lever - Shift and selector lever bellows Remaining interior equipment: - N6SW Montana leather, black --------------------------- Strips and covers in special wood see illustration 91_0129 --------------------------- Steering wheel, see illustration 91_0079 --------------------------- Door panels, center armrest, parking brake lever cover, selector lever bellows, center console and cover, see screen 91_0652 --------------------------- Rubber boot for shift lever, see illustration 91_0046 --------------------------- for floor mats, see figure 91_0449 |
||||||||
| For vehicles with Sports seat Seat cover |
S481A=Yes |
||||||||
| 01 | Cover, sports seat, leather | ZIMT | 2 | 05/2003 | 52108025667 | $917.91 | ENDED, NoS | ||
| 01 | Leather seat cover, nappa bicolor | DUNKELGRAU/GRAU | 2 | 05/2003 | 52108027827 | $912.33 | ENDED, NoS | ||
| For vehicles with Seat adjuster, electric, with memory and Sports seat Seat cover |
S459A=Yes S481A=Yes |
||||||||
| 01 | Cover, sports seat, leather | ZIMT | 2 | 05/2003 | 52108025669 | $917.91 | ENDED, NoS | ||
| 01 | Leather seat cover, nappa bicolor | DUNKELGRAU/GRAU | 2 | 05/2003 | 52108027829 | $719.82 | ENDED, NoS | ||
| For vehicles with Sports seat Backrest cover |
S481A=Yes |
||||||||
| 02 | Sports seat backrest cover,leather Nappa | ZIMT | 2 | 05/2003 | 52108025668 | $719.82 | ENDED, NoS | ||
| 02 | Leatehr backrest cover, nappa bicolor | DUNKELGRAU/GRAU | 2 | 05/2003 | 52108027828 | $912.33 | ENDED, NoS | ||
| For vehicles with Sports seat REAR PANEL WITH BAG |
S481A=Yes |
||||||||
| 03 | Rear panel seat leather | ZIMT | 2 | 05/2003 | 52108025670 | $571.95 | ENDED, NoS | ||
| 03 | Rear panel seat leather | DUNKELGRAU | 2 | 05/2003 | 52108027830 | ENDED, NoS | |||
| For vehicles with Sports seat HEADREST |
S481A=Yes |
||||||||
| 04 | Napa leather headrest | ZIMT | 2 | 05/2003 | 52108025666 | $232.13 | ENDED, NoS | ||
| 04 | Headrest leather | DUNKELGRAU | 2 | 05/2003 | 52108027826 | $229.90 | ENDED, NoS | ||
| Seat cover ISOFIX | |||||||||
| 05 | Seat cover leather | ZIMT | 1 | 05/2003 | 52208025788 | $1227.60 | ENDED, NoS | ||
| 05 | Seat cover leather | DUNKELGRAU/GRAU | 1 | 05/2003 | 52208027833 | $1227.60 | ENDED, +core, NoS | ||
| Headrest rear lateral | |||||||||
| 06 | Headrest leather | ZIMT | 2 | 05/2003 | 52208025786 | $229.90 | ENDED, NoS | ||
| 06 | Napa leather headrest | DUNKELGRAU | 2 | 05/2003 | 52208027831 | $229.90 | ENDED, +core, NoS | ||
| Headrest rear center-seat | |||||||||
| 07 | Headrest, center, leather | ZIMT | 1 | 05/2003 | 52208025787 | $229.90 | ENDED, NoS | ||
| 07 | Headrest, center, leather | DUNKELGRAU | 1 | 05/2003 | 52208027832 | $229.90 | ENDED, +core, NoS | ||
| Cover backrest, rear | |||||||||
| 08 | Cover backrest leather left | ZIMT | 1 | 05/2003 | 52208025789 | ENDED, NoS | |||
| 08 | Cover backrest leather right | ZIMT | 1 | 05/2003 | 52208025790 | ENDED, NoS | |||
| 08 | Cover backrest leather left | DUNKELGRAU/GRAU | 1 | 05/2003 | 52208027835 | $730.98 | ENDED, NoS | ||
| 08 | Cover backrest leather right | DUNKELGRAU/GRAU | 1 | 05/2003 | 52208027836 | $669.60 | ENDED, +core, NoS | ||
| Side section ISOFIX | |||||||||
| 09 | Lateral trim panel left | ZIMT | 1 | 05/2003 | 52208025791 | $334.80 | ENDED, NoS | ||
| 09 | Lateral trim panel right | ZIMT | 1 | 05/2003 | 52208025792 | $334.80 | ENDED, NoS | ||
| 09 | Lateral trim panel left | DUNKELGRAU | 1 | 05/2003 | 52208027837 | $334.80 | ENDED, NoS | ||
| 09 | Lateral trim panel right | DUNKELGRAU | 1 | 05/2003 | 52208027838 | $334.80 | ENDED, NoS | ||
| CENTER ARMREST REAR | |||||||||
| 10 | Armrest rear, leather | ZIMT | 1 | 05/2003 | 52208025793 | $714.24 | ENDED, NoS | ||
| 10 | Armrest rear, leather | DUNKELGRAU | 1 | 05/2003 | 52208027834 | $714.24 | ENDED, NoS | ||
| For vehicles with Integrated child seats |
S469A=Yes |
||||||||
| 11 | Child seat cover in leather | GRAU | 2 | 05/2003 | 52208025598 | ENDED, NoS | |||
| 11 | Child seat cover in leather | ZIMT | 2 | 05/2003 | 52208025677 | ENDED, NoS | |||
| 12 | Seat cover leather | ZIMT | 1 | 05/2003 | 52208025794 | ENDED, NoS | |||
| 12 | Seat cover leather | DUNKELGRAU/GRAU | 1 | 05/2003 | 52208027839 | ENDED, NoS | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part, central, not in stock.)
- +core = plus core charge (possibility of a return of the old part)
