5' E39 530d Individual series, Germany KA176 Part 2
Sponsored links
Sponsored links

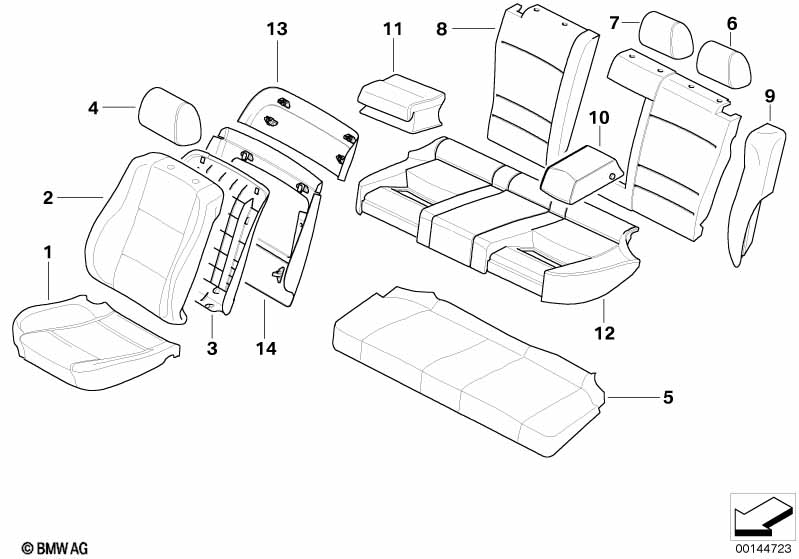

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general --------------------------- Variant 1: - Leather, felted nappa, cinnamon Trim parts: - Seats, trim piece for center console with contrast quilting in black: - Door trim panels, center armrest - Center console, handbrake lever - Shift and selector lever bellows Remaining interior equipment: - V6SW leather, exclusive, black --------------------------- Variant 2: - Leather, felted nappa, dark gray partially with leather, felted nappa, gray Trim parts: - Seats, trim piece for center console - Door trim panels, center armrest - Center console, handbrake lever - Shift and selector lever bellows Remaining interior equipment: - V6SW leather, exclusive, black --------------------------- Strips and covers in special wood see illustration 91_0129 --------------------------- Steering wheel, see illustration 91_0079 --------------------------- Door panels, center armrest, parking brake lever cover, selector lever bellows, center console and cover, see screen 91_0655 --------------------------- Rubber boot for shift lever, see illustration 91_0046 --------------------------- Floormats no longer available |
||||||||
| For vehicles with basic seat (standard seat) Seat cover |
=Yes |
||||||||
| 01 | Seat cover leather | ZIMT | 2 | 05/2003 | 52108025664 | ||||
| 01 | Seat cover leather | DUNKELGRAU/GRAU | 2 | 05/2003 | 52108027821 | $920.70 | ENDED | ||
| For vehicles with Comfort seat with memory Seat cover |
S456A=Yes |
||||||||
| 01 | Seat cover leather | ZIMT | 2 | 05/2003 | 52108025664 | NoS | |||
| 01 | Seat cover leather | DUNKELGRAU/GRAU | 2 | 05/2003 | 52108027821 | $920.70 | ENDED, NoS | ||
| For vehicles with basic seat (standard seat) Backrest cover |
=Yes |
||||||||
| 02 | Cover backrest, leather | ZIMT | 2 | 05/2003 | 52108025785 | ENDED, NoS | |||
| 02 | Cover backrest, leather | DUNKELGRAU/GRAU | 2 | 05/2003 | 52108027822 | $920.70 | ENDED, NoS | ||
| For vehicles with Comfort seat with memory Backrest cover |
S456A=Yes |
||||||||
| 02 | Cover backrest, leather | ZIMT | 2 | 05/2003 | 52108025665 | $708.66 | ENDED, NoS | ||
| 02 | Cover backrest, leather | DUNKELGRAU/GRAU | 2 | 05/2003 | 52108027825 | $937.44 | ENDED, NoS | ||
| For vehicles with basic seat (standard seat) REAR PANEL WITH BAG |
=Yes |
||||||||
| 03 | Rear panel, leather, with bag | ZIMT | 2 | 05/2003 | 52108022458 | $358.24 | ENDED, +core, NoS | ||
| 03 | Rear panel, leather, with bag | DUNKELGRAU | 2 | 05/2003 | 52108027823 | ENDED, +core, NoS | |||
| For vehicles with basic seat (standard seat) HEADREST |
=Yes |
||||||||
| 04 | Headrest leather | ZIMT | 2 | 05/2003 | 52108025784 | $229.90 | ENDED, NoS | ||
| 04 | Headrest leather | DUNKELGRAU | 2 | 05/2003 | 52108027820 | $229.90 | ENDED, NoS | ||
| For vehicles with Comfort seat with memory HEADREST |
S456A=Yes |
||||||||
| 04 | Headrest leather | ZIMT | 2 | 05/2003 | 52108025663 | $229.90 | ENDED, NoS | ||
| 04 | Headrest leather | DUNKELGRAU | 2 | 05/2003 | 52108027824 | $229.90 | ENDED, NoS | ||
| Seat cover ISOFIX | |||||||||
| 05 | Seat cover leather | ZIMT | 1 | 05/2003 | 52208025788 | $1227.60 | ENDED, NoS | ||
| 05 | Seat cover leather | DUNKELGRAU/GRAU | 1 | 05/2003 | 52208027833 | $1227.60 | ENDED, +core, NoS | ||
| Headrest rear lateral | |||||||||
| 06 | Headrest leather | ZIMT | 2 | 05/2003 | 52208025786 | $229.90 | ENDED, NoS | ||
| 06 | Napa leather headrest | DUNKELGRAU | 2 | 05/2003 | 52208027831 | $229.90 | ENDED, +core, NoS | ||
| Headrest rear center-seat | |||||||||
| 07 | Headrest, center, leather | ZIMT | 1 | 05/2003 | 52208025787 | $229.90 | ENDED, NoS | ||
| 07 | Headrest, center, leather | DUNKELGRAU | 1 | 05/2003 | 52208027832 | $229.90 | ENDED, +core, NoS | ||
| Cover backrest, rear | |||||||||
| 08 | Cover backrest leather left | ZIMT | 1 | 05/2003 | 52208025789 | ENDED, NoS | |||
| 08 | Cover backrest leather right | ZIMT | 1 | 05/2003 | 52208025790 | ENDED, NoS | |||
| 08 | Cover backrest leather left | DUNKELGRAU/GRAU | 1 | 05/2003 | 52208027835 | $730.98 | ENDED, NoS | ||
| 08 | Cover backrest leather right | DUNKELGRAU/GRAU | 1 | 05/2003 | 52208027836 | $669.60 | ENDED, +core, NoS | ||
| Side section ISOFIX | |||||||||
| 09 | Lateral trim panel left | ZIMT | 1 | 05/2003 | 52208025791 | $334.80 | ENDED, NoS | ||
| 09 | Lateral trim panel right | ZIMT | 1 | 05/2003 | 52208025792 | $334.80 | ENDED, NoS | ||
| 09 | Lateral trim panel left | DUNKELGRAU | 1 | 05/2003 | 52208027837 | $334.80 | ENDED, NoS | ||
| 09 | Lateral trim panel right | DUNKELGRAU | 1 | 05/2003 | 52208027838 | $334.80 | ENDED, NoS | ||
| CENTER ARMREST REAR | |||||||||
| 10 | Armrest rear, leather | ZIMT | 1 | 05/2003 | 52208025793 | $714.24 | ENDED, NoS | ||
| 10 | Armrest rear, leather | DUNKELGRAU | 1 | 05/2003 | 52208027834 | $714.24 | ENDED, NoS | ||
| For vehicles with Integrated child seats |
S469A=Yes |
||||||||
| 11 | Child seat cover in leather | GRAU | 2 | 05/2003 | 52208025598 | ENDED, NoS | |||
| 11 | Child seat cover in leather | ZIMT | 2 | 05/2003 | 52208025677 | ENDED, NoS | |||
| 12 | Seat cover leather | ZIMT | 1 | 05/2003 | 52208025794 | ENDED, NoS | |||
| 12 | Seat cover leather | DUNKELGRAU/GRAU | 1 | 05/2003 | 52208027839 | ENDED, NoS | |||
| For vehicles with Comfort seat with memory Rear panel cover, top |
S456A=Yes |
||||||||
| 13 | Upper rear panel | DUNKELGRAU | 2 | 05/2003 | 52108015878 | $406.22 | ENDED, +core, NoS | ||
| 13 | Upper rear panel | ZIMT | 2 | 05/2003 | 52108022459 | $176.33 | ENDED, +core, NoS | ||
| For vehicles with Comfort seat with memory Rear panel cover, bottom |
S456A=Yes |
||||||||
| 14 | Lower rear panel | DUNKELGRAU | 2 | 05/2003 | 52108015879 | $553.54 | ENDED, +core, NoS | ||
| 14 | Lower rear panel | ZIMT | 2 | 05/2003 | 52108022460 | $591.48 | ENDED, +core, NoS | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part, central, not in stock.)
- +core = plus core charge (possibility of a return of the old part)
