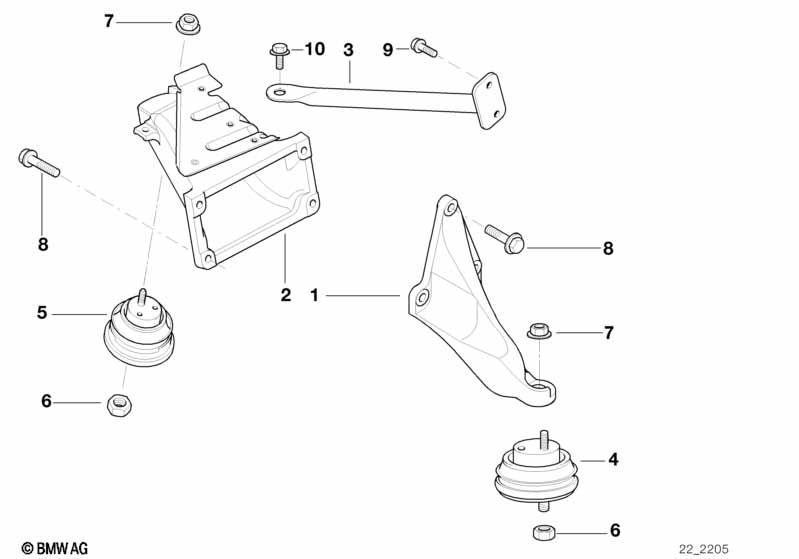

5' E39 523i Engine Suspension

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine support, left 1 22111092973 $31.87
02 Engine support right 1 09/1998 22116752648 $31.87
02 Engine support right 1 09/1998 22116752648 $31.87
03 Support 1 09/1998 22111093110 $14.22
04 Engine mount 1 22116754608 $66.22
05 Engine mount 1 22116754608 $66.22
06 Hex nut AM10-8 2 22111093584 $0.53 ENDED
06 Hex nut M10-8-ZNS3 2 07129904048 $1.05
07 Hex nut AM10-10-ZNS3 2 07129904865 $1.00
08 Hex bolt with washer M8X34-ZA-Z1 8 07119900728 $0.62
09 Hex bolt with washer M8X20-ZNS3 2 09/1998 07147165618 $0.73
10 Hex bolt with washer M8X18-Z2 1 09/1998 07119915132 $0.43
Notes
  • ENDED = the part has been discontinued (no longer available).
