5' E39 523i Suspension automatic transmission

Suspension automatic transmission

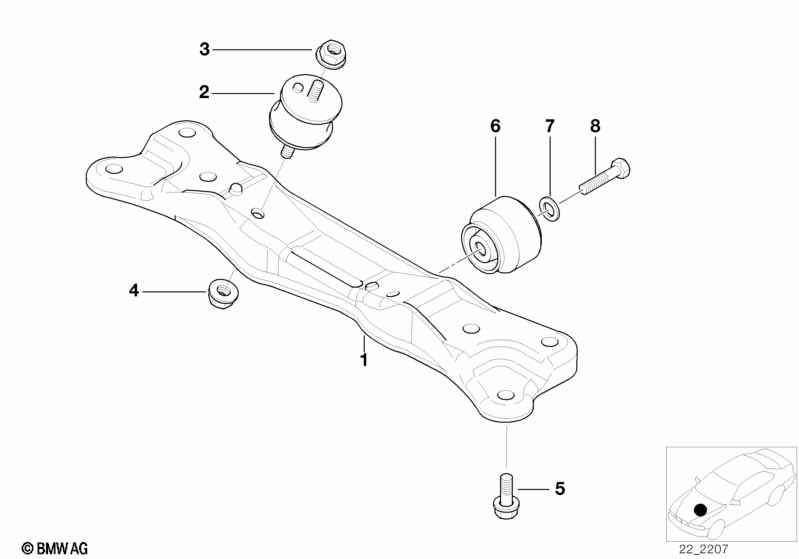

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Gearbox support 1 22321092477 $41.97
02 Transmission bearing set 2 22316799331 +core
03 Hex nut with plate M8 2 22316760944 $0.38
04 Hex nut with plate M8-ZNS3 2 07129904862 $1.12
05 Hex bolt with washer M8X22-8.8-ZNS3 6 22326760945 $1.08
06 Vibration absorber 1 24701142019 $58.80
07 Washer A13/HV-ZNS 1 07119901766 $0.30
08 Hex bolt M12X1,5X70 ZNS 1 07119903156 $1.64
Notes
  • +core = plus core charge (possibility of a return of the old part)
