5' E39 523i A5S310Z planet wheel sets

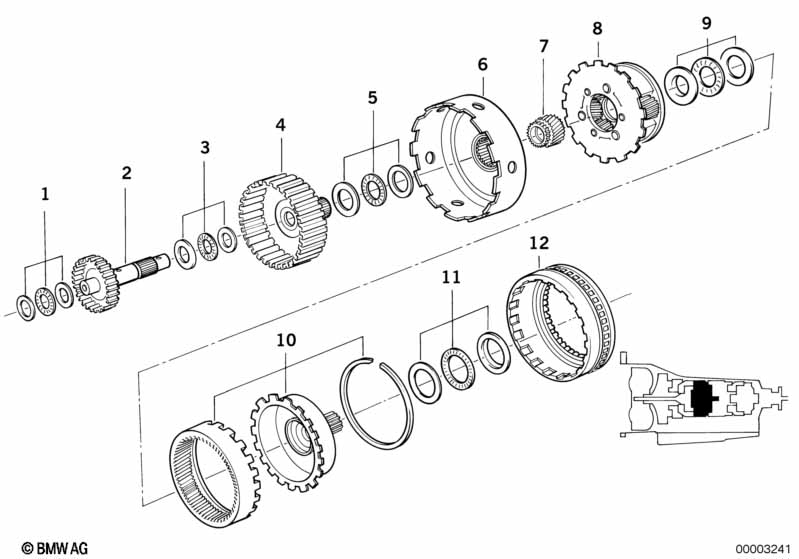

A5S310Z planet wheel sets
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 AX bearing 1 09/1998 24221219498 $8.25
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
02 Intermediate shaft 1 09/1998 24221421362 $237.71 ENDED
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
03 AX bearing 1 09/1998 24221219496 $4.52
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
04 Sun shaft 1 09/1998 24221219495 $304.67 ENDED
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
05 AX bearing 1 09/1998 24221219494 $8.70
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
06 Pot 1 09/1998 24221219807 $121.64
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
07 Sun gear 1 09/1998 24221219806 $151.78 ENDED
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
08 Planet wheel carrier I + II 1 09/1998 24221422514 $1026.72 ENDED, +core
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
09 AX bearing 1 09/1998 24221219489 $11.83
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
10 Shaft with hollow gear wheel 1 09/1998 24221421778 $588.69 ENDED
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
11 AX bearing 1 09/1998 24221219473 $9.82
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
12 Spider CL.bell 1 09/1998 24221422515 $85.37
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
