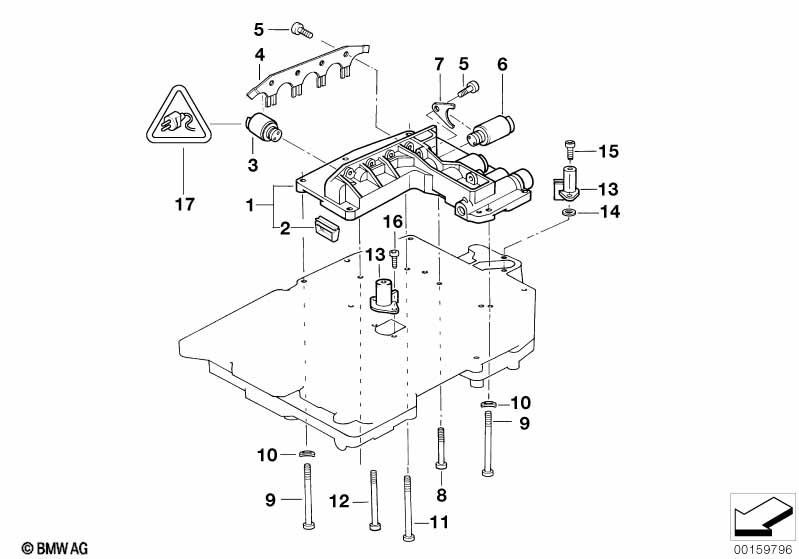

5' E39 523i A5S310Z mounting parts control unit

A5S310Z mounting parts control unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pressure regulator with housing 1 09/1998 24341422710 $568.08 +core
02 Strainer tube 4 09/1998 24341422709 $3.37
03 Solenoid valve (SOLV) 5 09/1998 24341421205 $198.14
04 Bracket 1 09/1998 24341219315 $2.90 ENDED
05 Torx bolt M5X12 5 09/1998 24341219933 $1.12
06 Solenoid valve (SOLV) 1 09/1998 24341421347 $94.06
07 Bracket 1 09/1998 24341215600 $1.19 ENDED
08 Torx bolt M5X25 4 09/1998 24341219936 $1.12 ENDED
09 Torx bolt M5X60 3 09/1998 24341219939 $1.40 ENDED
10 Wave washer B5 3 09/1998 24341219320 $0.75 ENDED
11 Torx bolt M5X60 X 09/1998 24341219937 $1.40 ENDED
12 Torx bolt M5X55 1 09/1998 24341219938 $2.00
13 Pulse generator 2 09/1998 24341219316 $50.64 +core
14 Spacer ring 2 09/1998 24341219317 $1.61
15 Torx bolt M5X22 2 09/1998 24341219935 $1.39
16 Torx bolt M5X18 2 09/1998 24347518839 $1.70
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
