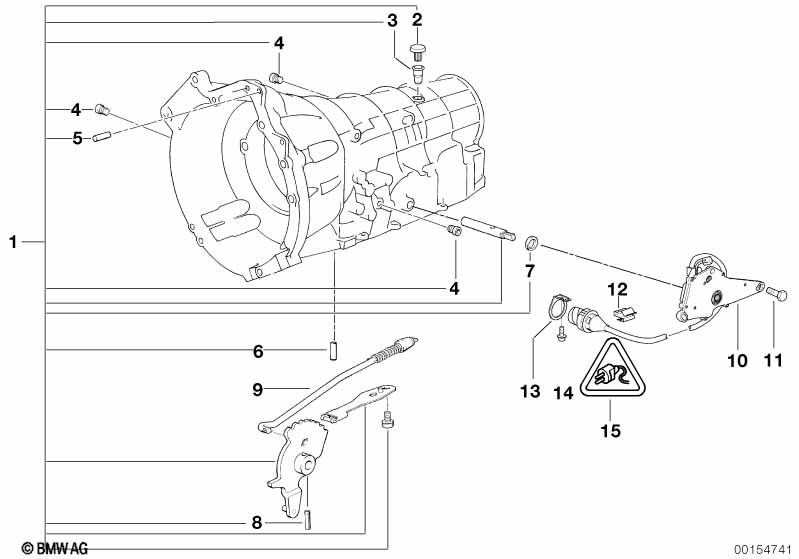

5' E39 523i A5S310Z housing with mounting parts

A5S310Z housing with mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission housing 1 09/1998 24101422628 ENDED, +core
only in conjunction with
-- Set of adjusting plates 1 09/1998 24271421722 $69.13
-- Set of adjusting plates 1 09/1998 24271421791 $51.43
02 Vent cover 1 09/1998 24101422142 $1.95
only in conjunction with
-- Vent pipe 1 09/1998 24101422141 $5.93
03 Vent pipe 1 09/1998 24101422141 $5.93
only in conjunction with
-- Vent cover 1 09/1998 24101422142 $1.95
04 Screw Plug With Gasket Ring M10X1 2 09/1998 24117552351 $4.60
05 Dowel pin 8M6X24 1 09/1998 24411218031 $2.38
06 Dowel pin 6M6X16 1 09/1998 24101219418 $1.38
07 Shaft seal 10X18X5 1 09/1998 24147571213 $5.20
09 Connection rod 1 09/1998 24521422246 $22.89
10 Position switch 1 09/1998 24107507818 $288.45 +core
11 Hex bolt M6X20 2 09/1998 24101421422 $1.87
12 Cable clamp 1 09/1998 24101421795 $0.85
13 Bracket 1 09/1998 24101422296
14 Fillister-head screw M8X20 1 09/1998 24101422619 ENDED
15 Plug housing 10-POL 1 09/1998 12521740615 $5.52
only in conjunction with
-- Grommet 1 09/1998 12521703522 $3.37
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
