5' E39 523i Accelerator pedal/bowden cable

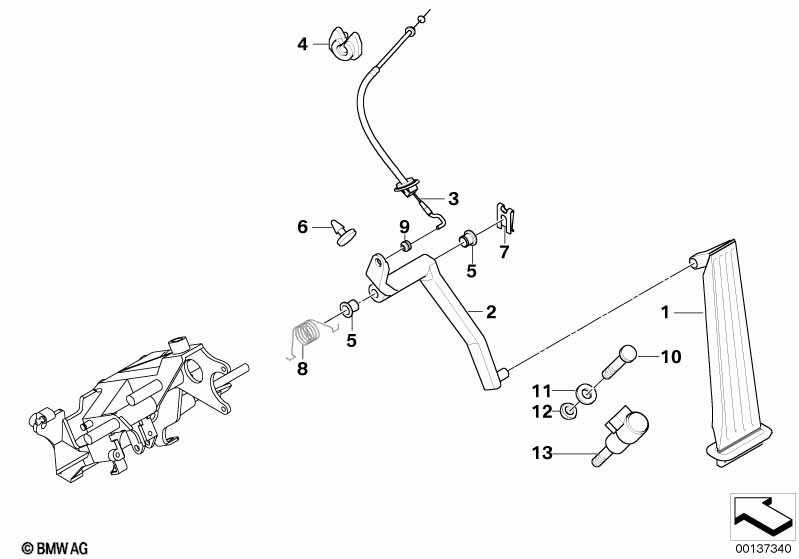

Accelerator pedal/bowden cable
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Accelerator pedal assy 1 35411161723 $26.33
02 Shaft, accelerator pedal 1 35411161724 $12.08
03 Accelerator bowden cable 1 09/1998 35411163031 $12.70
03 Accelerator bowden cable LEV/M52 1 09/1998 35411164007 $11.70
only in conjunction with
-- Hose clamp D=8MM/14MM 1 09/1998 11721164034 $1.17
04 Grommet f accelerator Bowden cable 1 09/1998 35411164739 $1.68
only applies to
-- Bracket idle adjuster X 09/1998 11611432563 $8.05
05 Bushing D=10MM 2 35411100674 $0.80
06 Clutch pedal stop buffer 1 35311103849 $0.73
07 Fuse B10-ZNS3 1 07129904567 $0.40
08 Retainer spring 1 35411161562 $1.17
09 Rubber grommet D=10MM 1 35411152331 $1.17
13 Kick-down switch 1 35421181103 $29.92
