5' E39 523i Extending cargo cover/partition net

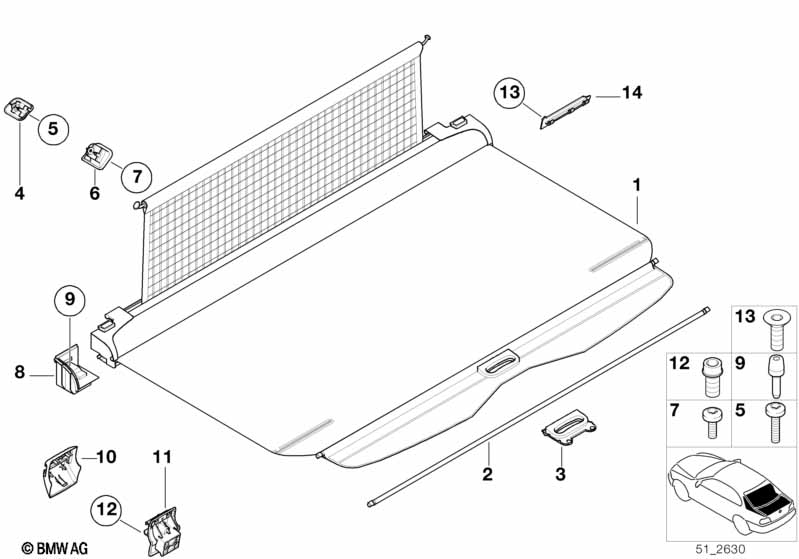

Extending cargo cover/partition net
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Roller-combination SCHWARZ 1 09/1997 51478217323 $697.50 ENDED
01 Roller-combination GRAU 1 09/1997 51478217324 $697.50 ENDED
01 Roller-combination MARINEBLAU 1 09/1997 51478217331 $697.50 ENDED
01 Roller-combination DUNKELGRUEN 1 09/1997 51478217332 $828.91 ENDED
01 Roller-combination SANDBEIGE 1 09/1997 51478217333 $697.50 ENDED
01 combination roller blind ITS SCHWARZ 1 09/1997 51478236357 $828.91
01 combination roller blind ITS GRAU 1 09/1997 51478236358 $828.91
01 combination roller blind ITS MARINEBLAU 1 09/1997 51478236359 $697.50
01 combination roller blind ITS DUNKELGRUEN 1 09/1997 51478236360 $697.50
01 combination roller blind ITS SANDBEIGE 1 09/1997 51478236361 $828.91
02 Roller blind pull-out bar 1 51477009055 $17.14
03 Roller blind handle SCHWARZ 1 51478235761 $22.20
04 Hook front left HELLGRAU 1 09/1997 51478217067
04 Hook front right HELLGRAU 1 09/1997 51478217068
04 Hook front left SANDBEIGE 1 09/1997 51478217069 ENDED
04 Hook front right SANDBEIGE 1 09/1997 51478217070 ENDED
04 hook, front left - ITS ANTHRAZIT 1 09/1997 51472497579 $12.12
04 hook, front right - ITS ANTHRAZIT 1 09/1997 51472497580 $12.12
04 hook, front left - ITS HELLGRAU 1 09/1997 51478236401 $12.12
04 hook, front right - ITS HELLGRAU 1 09/1997 51478236402 $12.12
04 hook, front left - ITS SANDBEIGE 1 09/1997 51478236403 $12.12
04 hook, front right - ITS SANDBEIGE 1 09/1997 51478236404 $12.12
05 Fillister head screw M6X25-SW 2 07119907997 $0.71
06 Hook rear left HELLGRAU 1 09/1997 51478217063
06 Hook rear right HELLGRAU 1 09/1997 51478217064
06 Hook rear left SANDBEIGE 1 09/1997 51478217065 ENDED
06 Hook rear right SANDBEIGE 1 09/1997 51478217066 ENDED
06 hook, rear left - ITS ANTHRAZIT 1 09/1997 51472497581 $12.12
06 hook, rear right - ITS ANTHRAZIT 1 09/1997 51472497582 $12.12
06 hook, rear left - ITS HELLGRAU 1 09/1997 51478236405 $12.12 ENDED
06 hook, rear right - ITS HELLGRAU 1 09/1997 51478236406 $12.12 ENDED
06 hook, rear left - ITS SANDBEIGE 1 09/1997 51478236407 $12.12 ENDED
06 hook, rear right - ITS SANDBEIGE 1 09/1997 51478236408 $12.12 ENDED
07 Torx bolt ISA M6X16 2 41352290799 $1.10
08 Left support f roll.blind sight protect. SCHWARZ 1 03/2000 51478203967 $29.85 ENDED
08 Right support f roll.blind sight protect SCHWARZ 1 03/2000 51478203968 $29.85 ENDED
08 Left support f roll.blind sight protect. 1 03/2000 51477026709 $34.30
08 Right support f roll.blind sight protect 1 03/2000 51477026710 $34.30
09 Torx bolt M5X19MM 4 12/2003 51478207906 $0.88 ENDED
09 Torx bolt M5X19 4 07143450893 $0.86
10 Cover f roller cover support SCHWARZ 1 51478217252 $8.04
10 Cover f roller cover support GRAU 1 51478217258 $8.04
10 Cover f roller cover support MARINEBLAU 1 51478217259 $7.95 ENDED
10 Cover f roller cover support DUNKELGRÜN 1 51478217260 $7.95 ENDED
10 Cover f roller cover support SANDBEIGE 1 51478217261 $8.04
11 Floor support f roller blind SCHWARZ 2 51478217304 $30.48
12 Fillister head with washer M6X20-SB-Z1-8.8 4 07119900514 $1.93
13 Countersunk head screw 6 51478235983 $0.89
14 Left adapter rail 1 51478235763 $23.44 ENDED, +core
14 Right adapter rail 1 51478235764 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
