5' E39 523i Control unit box

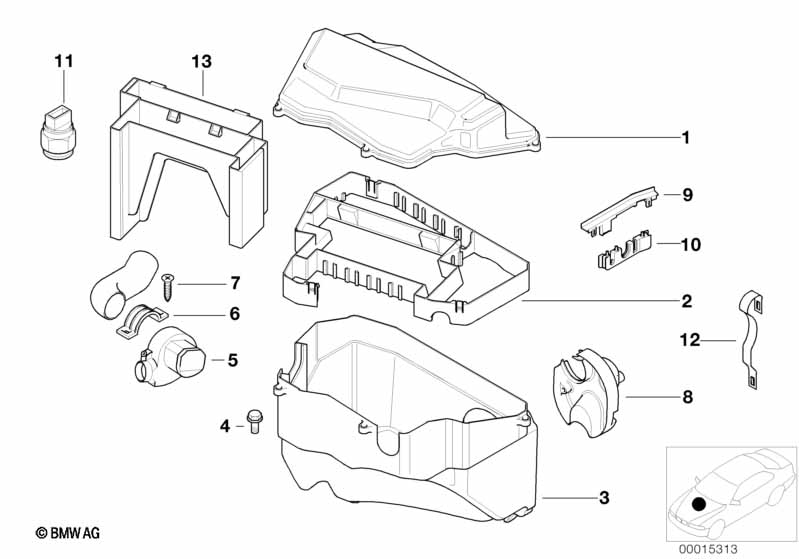

Control unit box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover 1 12901427552 $50.13
02 Carrier control unit 1 12901427553
03 Bottom part without blower 1 09/1997 12901427870
03 Bottom part without blower 1 09/1997 12901706412 +core
For vehicles with
Hot-climate version

S823A=No
03 Bottom part without blower 1 09/1998 12901436670 +core
For vehicles with
Hot-climate version

S823A=Yes
03 Bottom part with blower TÜ-98 1 09/1998 12901436669 +core
04 Hex bolt with washer M6X20-Z2 4 07119913580 $0.62 ENDED
04 Hex bolt M6X20-U2-8.8 4 07119903995 $0.53
05 Blower unit 1 09/1998 12901745181 $167.11
06 Clamp 1 12901744599 $1.12
07 Screw for thermoplastic plastics TS 5X12 2 12/2003 07129925820 $0.36 ENDED
07 Screw for thermoplastic plastics M5X12 2 07129904293 $1.05
08 Cover without blower 1 12901427555
08 Cover blower 1 12901427836
09 Partition seal, upper section 1 34301163455 $1.85
10 Cable holder 1 12521427295
11 Temperature switch 35 CEL 1 12521741900 $31.13
12 Plate spring 4 12901747670 $0.78
13 Slide-in box SKE 1 09/1997 12901433381
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
