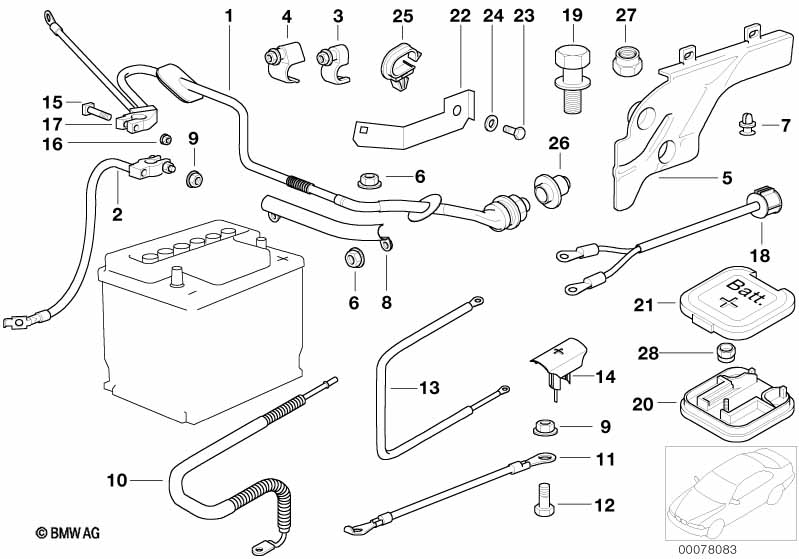

5' E39 523i Battery cable

Battery cable
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Battery cable (plus pole) 1 09/1997 12421435630 ENDED, +core
01 Battery cable (plus pole) SBK 1 09/1997 12421436888 $276.98 +core
For vehicles with
Additional energy supply

S146A=Yes
01 Battery cable (plus pole) SBK 1 09/1997 12421439247 $234.36 +core
02 Battery cable negative 1 09/1997 12421741976 $24.44
02 Battery cable negative 1 12421436910 $24.44
03 Clamp 3 12521710686 $0.63
05 Cover 1 12521702797 $8.03
06 Plastic nut M6 6 16131176747 $0.53
07 Expanding rivet 2 51481938725 $0.37
08 Cable guide 1 12421740751 $2.92
09 Hex bolt with washer M8X16 4 07119905528 $0.62
10 Cable starter-base B+ 1 12421744987 $29.33
11 Ground cable L=380MM 1 12421737755 $19.50
13 Cable alternator-starter 1 12421427238 $50.13
14 Covering base B+ 1 12421433212 $4.63
17 Rep.kit f safety battery terminal clamp 50 QMM 1 09/1997 12421733937 $381.44
19 Screw anchor point B+ 1 12421433178 $4.43
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
