5' E39 520i Timing case

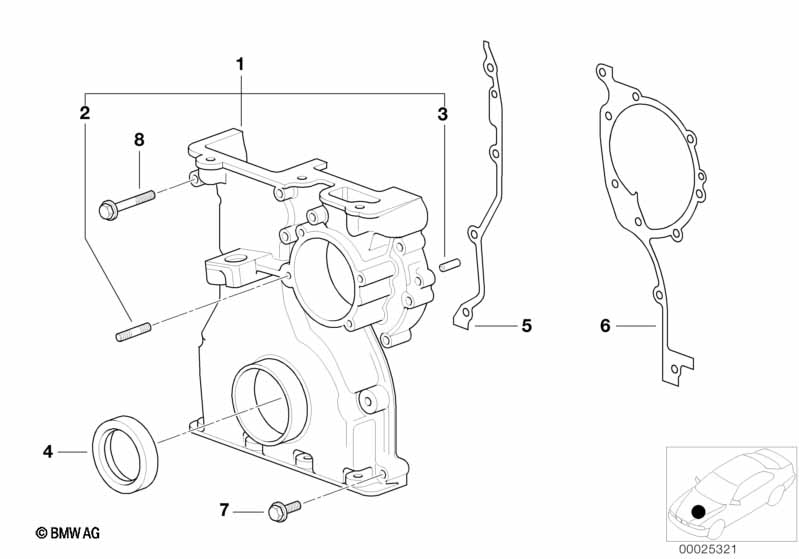

Timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover, bottom 1 11141436720 $158.65 +core
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Stud bolt M6X30-ZNNIV SI 4 07129904544 $1.42
03 Dowel pin 5 H8X14 2 07119942283 $0.85
04 Shaft seal 48X65X10 1 11142249532 $24.02
05 Lower Chain Case Metal Gasket 1 11141433639 $5.17
06 Lower Chain Case Metal Gasket 1 11141707260 $7.81
07 Hex bolt with washer M6X32-Z1 10 07119900486 $0.47
08 Hex bolt with washer M6X62-Z1 4 07119900487 $0.82
Notes
  • +core = plus core charge (possibility of a return of the old part)
