5' E39 520i Valve Timing Gear - Cam Shaft

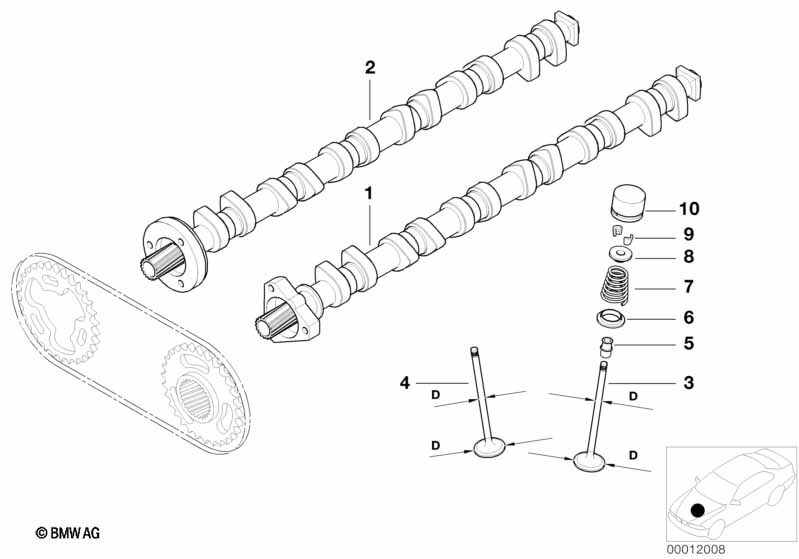

Valve Timing Gear - Cam Shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Inlet camshaft 1 11311438079 $585.21
02 Camshaft exhaust 1 11311435416 $585.21
03 Intake valve 30.0/5.94MM 12 11341438381 $27.75
04 Exhaust valve 27.0/5.94MM 12 11347502351 $44.04
05 Repair kit valve seal ring 2 11349064457 $46.94
06 Lower spring plate 24 11341735254 $3.77
07 Valve spring 24 11347504268 $7.88
08 Upper spring plate 24 11341432453 $3.77
09 Valve collet D=6 48 11341461405 $1.34
10 Hydraulic valve lifter 24 11321748884 $32.50
