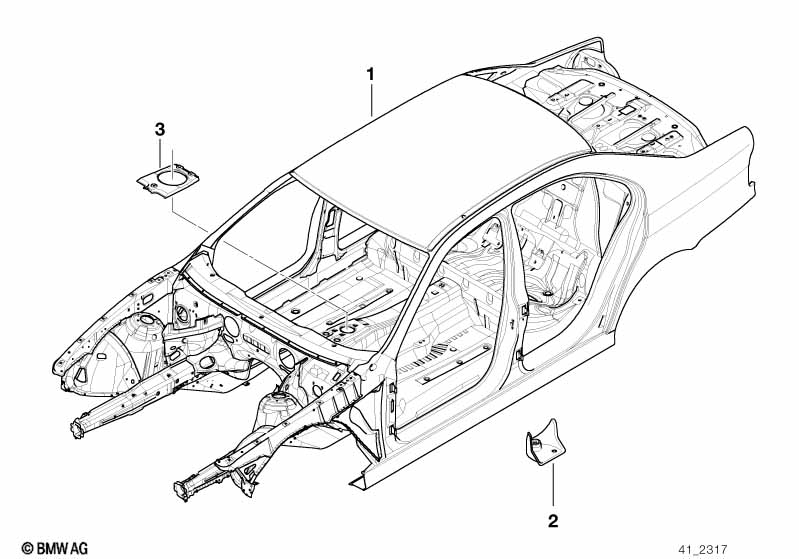

5' E39 530i Body skeleton

Body skeleton
No. Description Supp. Qty  From   Up To  Part Number Price Notes
FOR VEHICLES WITH AND WITHOUT
SKI BAG
01 Body skeleton BASIS 1 09/2000 41007033044 ENDED
If necessary, with
Pos. 2
Pos. 3
01 Body skeleton sliding lifting roof BASIS 1 09/2000 41007033045 ENDED
If necessary, with
Pos. 2
Pos. 3
01 Body skeleton BASIS 1 09/2000 41007033044 ENDED
only in conjunction with
01 Body skeleton sliding lifting roof BASIS 1 09/2000 41007033045 ENDED
only in conjunction with
-- Adapter lead, rear light, left 1 09/2000 63120025517 $30.50
Rear lights from 09/00
Light and check control module from
09/00
Important! Coding of LCM "Retrofit rear
lights Facelift 2000"
If necessary, with
Pos. 2
Pos. 3
-- Adapter lead, rear light, right 1 09/2000 63120026771 $30.50
Rear lights from 09/00
Light and check control module from
09/00
Important! Coding of LCM "Retrofit rear
lights Facelift 2000"
If necessary, with
Pos. 2
Pos. 3
For vehicles with
Through-loading system

S465A=Yes
01 Body skeleton BASIS 1 09/2000 41007033046 ENDED
If necessary, with
Pos. 2
Pos. 3
01 Body skeleton sliding lifting roof BASIS 1 09/2000 41007033047 ENDED
If necessary, with
Pos. 2
Pos. 3
01 Body skeleton BASIS 1 09/2000 41007033046 ENDED
only in conjunction with
01 Body skeleton sliding lifting roof BASIS 1 09/2000 41007033047 ENDED
only in conjunction with
-- Adapter lead, rear light, left 1 09/2000 63120025517 $30.50
Rear lights from 09/00
Light and check control module from
09/00
Important! Coding of LCM "Retrofit rear
lights Facelift 2000"
If necessary, with
Pos. 2
Pos. 3
-- Adapter lead, rear light, right 1 09/2000 63120026771 $30.50
Rear lights from 09/00
Light and check control module from
09/00
Important! Coding of LCM "Retrofit rear
lights Facelift 2000"
If necessary, with
Pos. 2
Pos. 3
02 Support f rear/centre left transmission 1 41128203911 ENDED
02 Support f rear/centre right transmission 1 41128203912 ENDED
03 Support f gear shift lug with steptronic 1 41128176686 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
