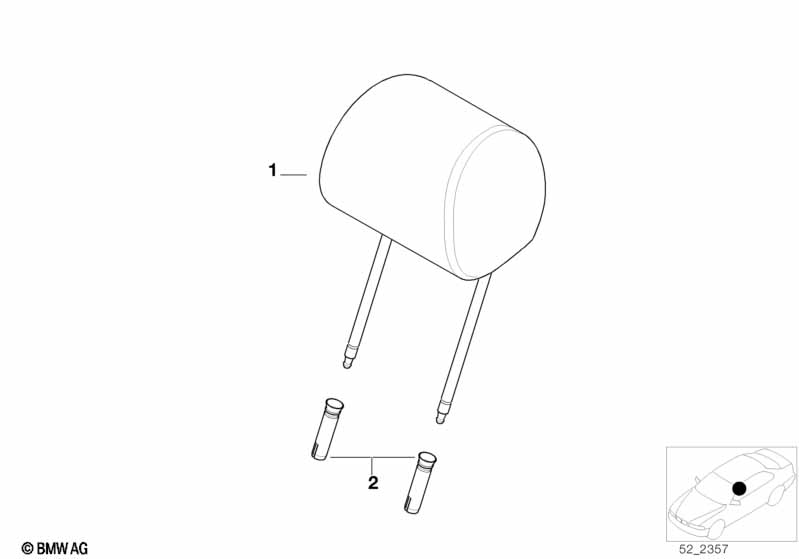

5' E39 530i Seat, front, head restraint

Seat, front, head restraint
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Cloth flock
only applies to
REAR PANEL WITHOUT BAG

F6=Yes
01 Head rest cloth F6EG ENGL.GRUEN 2 09/1998 09/2001 52108242788 $107.42 ENDED, +core
01 Head rest cloth F6AT ANTHRAZIT 2 09/1998 09/2001 52108251657 $107.42 ENDED
01 Head rest cloth F6DL MARINEBLAU 2 09/1998 09/2001 52108251658 $107.42 ENDED
01 Head rest cloth F6TT GRAU 2 09/1998 09/2001 52108251659 $107.42 ENDED, +core
For vehicles with
Diagonal rep cloth

F4=Yes
01 Head rest cloth F4AT ANTHRAZIT 2 09/1998 09/2001 52108251652 $116.81 ENDED
01 Head rest cloth F4AT ANTHRAZIT 2 09/1998 02/2002 52107051737 $107.07 ENDED, +core
01 Head rest cloth F4AT ANTHRAZIT 2 09/1998 52107045111 $122.08
01 Head rest cloth F4BR BIARRITZBL 2 09/1998 09/2001 52108251653 $107.42 ENDED, +core
01 Head rest cloth F4SR SIENAROT 2 09/1998 09/2001 52108251654 $107.42 ENDED, +core
01 Head rest cloth F4TT GRAU 2 09/1998 09/2001 52108251655 $119.15 ENDED, +core
01 Head rest cloth F4TT GRAU 2 09/1998 02/2002 52107051738 $109.80 ENDED, +core
01 Head rest cloth F4TT GRAU 2 09/1998 52107045112 $122.08 ENDED, +core
01 Head rest cloth F4TT GRAU 2 09/1998 02/2002 52107051738 $109.80 ENDED, +core
01 Head rest cloth F4DL MARINEBLAU 2 09/1998 02/2002 52107051739 $118.30 ENDED, +core
01 Head rest cloth F4DL MARINEBLAU 2 09/1998 52107056466 $107.42 ENDED, +core
01 Head rest cloth F4EG ENGL.GRUEN 2 09/1998 52107051740 $111.89 ENDED, +core
01 Head rest cloth F4EG ENGL.GRUEN 2 09/1998 02/2002 52107056467 $107.42 ENDED, +core
For vehicles with
Leather Highline

V6=Yes
01 Headrest leather V6SW SCHWARZ 2 09/2001 52107049106 $249.98 ENDED, +core
01 Headrest leather V6SN SANDBEIGE 2 09/2001 52107049107 $249.98 ENDED, +core
01 Headrest leather V6BG BURGUND 2 09/2001 52107049108 $249.98 ENDED, +core
For vehicles with
Cloth flock "Streifen"

D9=Yes
01 Head rest cloth D3AT,D9AT ANTHR 2 09/1998 52108196274 $107.42 ENDED, +core
01 Head rest cloth D3TT,D9TT GRAU 2 09/1998 52108196275 $107.42 ENDED, +core
01 Head rest cloth D3DL,D9DL BLAU 2 09/1998 52108196276 $107.42 ENDED, +core
For vehicles with
Fabric, woolen velours/Vavona wood

B7=Yes
01 Head rest cloth B7TT GRAU 2 09/1998 52108176030 $146.20 ENDED, +core
01 Head rest cloth B7AT ANTHRAZIT 2 09/1998 52108176031 $146.20 ENDED, +core
01 Head rest cloth B7DL MARINEBLAU 2 09/1998 52108176032 $146.20 ENDED, +core
01 Head rest cloth B7SX SEEGRUEN 2 09/1998 52108195850 $107.42 ENDED, +core
For vehicles with
Leather Mont./basic equipm.

N6=Yes
01 Headrest leather N6AI AUBERGINE 2 09/2001 52108195998 $206.46 ENDED, +core
01 Headrest leather N6SY SAT.BRAUN 2 09/2001 52108196278 $206.46 ENDED, +core
01 Headrest leather N6EG ENGL.GRUEN 2 09/2001 52108221279 $206.46 ENDED
01 Headrest leather N6TT GRAU 2 52108176035 $213.25 +core
01 Headrest leather N6SW SCHWARZ 2 52108176036 $213.25
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, montana

N6=Yes

O7=Yes
01 Headrest leather N6SN,O7SN BEIGE 2 52108176038 $213.25 ENDED, +core
01 Headrest leather N6LG,O7LG LIGHT 2 09/1998 52108258919 $206.46 ENDED, +core
01 Headrest leather N6GN,O7GN STEIN 2 09/1998 52108258920 $206.46 ENDED
02 Guide ROT 4 52208219115 $1.88
For vehicles with
Seat adjuster, electric, with memory

S459A=Yes
02 Guide GRAU 2 52108193916 $1.44 ENDED
02 Guide bush 2 52208132020 $1.80
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
