5' E39 530i Rear seat head restraint

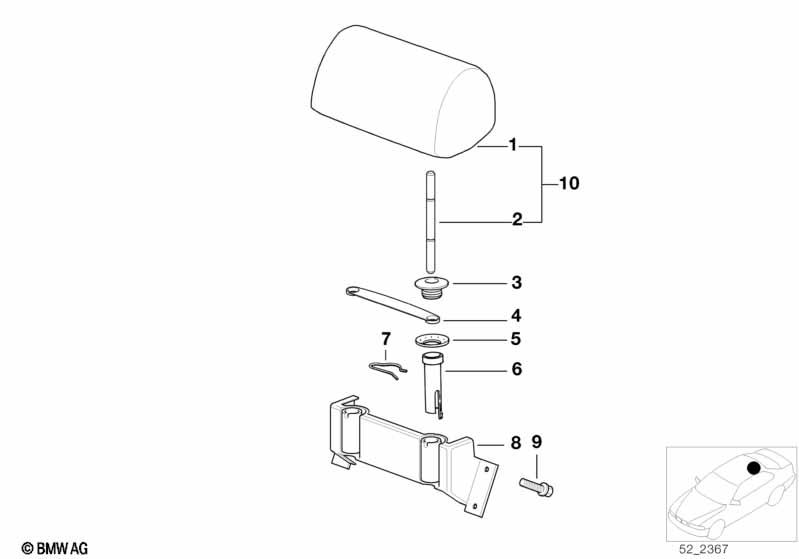

Rear seat head restraint
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Diagonal rep cloth

F4=Yes
01 Head rest cloth F4AT ANTHRAZIT 2 03/1998 52208158780 $120.53 ENDED, +core
01 Head rest cloth F4TT GRAU 2 03/1998 52208158781 $120.53 ENDED
01 Head rest cloth F4BR BIARR.BLAU 2 09/1998 09/2001 52208158782 $120.53 ENDED, +core
01 Head rest cloth F4SR SIENAROT 2 09/1998 09/2001 52208158783 $120.53 ENDED, +core
01 Head rest cloth F4DL MARINEBLAU 1 09/2001 52207054523 $120.53 ENDED, +core
01 Head rest cloth F4EG ENGL.GRUEN 1 09/2001 52207054524 $120.53 ENDED, +core
For vehicles with
Buffalo leather/Bubinga

P2=Yes
01 Headrest leather P2AT ANTHRAZIT 2 09/2001 52208197697 $206.46 ENDED
For vehicles with
Softleather Bubinga

N9=Yes
01 Headrest leather N9SW SCHWARZ 2 09/2001 52208197692 $206.46 ENDED
01 Headrest leather N9TT GRAU 2 09/2001 52208197693 $224.04 ENDED
01 Headrest leather N9DL MARINEBLAU 2 09/2001 52208197694 $206.46 ENDED
01 Headrest leather N9SN SANDBEIGE 2 09/2001 52208197695 $206.46 ENDED
01 Headrest leather N9NG,R1NG BRAUN 2 09/2001 52208261658 $206.46 ENDED
For vehicles with
Cloth/leather "Sportline"

J3=Yes
01 Headrest leather J3AT ANTHRAZIT 1 09/2001 52207049586 $158.47 ENDED, +core
01 Headrest leather J3FA FLANELGRAU 1 09/2001 52207049587 $158.47 ENDED, +core
01 Headrest leather J3GC GRAUBLAU 1 09/2001 52207049588 $158.47 ENDED, +core
For vehicles with
Leather Highline

V6=Yes
01 Headrest leather V6SW SCHWARZ 1 09/2001 52207049382 $206.46 ENDED, +core
01 Headrest leather V6SN SANDBEIGE 1 09/2001 52207049383 $206.46 ENDED
01 Headrest leather V6BG BURGUND 1 09/2001 52207049384 $206.46 ENDED, +core
For vehicles with
Cloth flock

F6=Yes
01 Head rest cloth F6AT ANTHRAZIT 1 09/1998 09/2001 52208251466 $120.53 ENDED
01 Head rest cloth F6DL MARINEBLAU 1 09/1998 09/2001 52208251467 $120.53 ENDED, +core
01 Head rest cloth F6TT GRAU 1 09/1998 09/2001 52208251468 $120.53 ENDED, +core
01 Head rest cloth F6EG ENGL.GRUEN 1 09/1998 09/2001 52208255902 $120.53 ENDED, +core
For vehicles with
Imitation leather

K4=Yes
01 Headrest imitation leather K4SW SCHWARZ 2 52208218427 $120.53 ENDED
01 Headrest imitation leather K4SN SANDBEIGE 2 52208218428 $128.24 ENDED
For vehicles with
Fabric, woolen velours/Vavona wood

B7=Yes
01 Head rest cloth B7AT ANTHRAZIT 2 09/1998 52208197675 $120.53 ENDED, +core
01 Head rest cloth B7TT GRAU 2 09/1998 52208197676 $120.53 ENDED, +core
01 Head rest cloth B7DL MARINEBLAU 2 09/1998 52208197677 $120.53 ENDED, +core
01 Head rest cloth B7SX MEERGRUEN 2 09/1998 52208197679 $120.53 ENDED, +core
For vehicles with
Fabric, flat "Rattan"

D4=Yes
01 Head rest cloth D4AT ANTHRAZIT 2 09/1998 52208197681 $120.53 ENDED, +core
01 Head rest cloth D4TT GRAU 2 09/1998 52208197682 $120.53 ENDED, +core
01 Head rest cloth D4EG ENGL.GRUEN 2 09/1998 52208197683 $120.53 ENDED, +core
01 Head rest cloth D4KU KOENIGBLAU 2 09/1998 52208197684 $120.53 ENDED, +core
For vehicles with
Leather Mont./basic equipm.

N6=Yes
01 Headrest leather N6AI AUBERGINE 2 09/2001 52208197688 $176.33 ENDED, +core
01 Headrest leather N6SY SAT.BRAUN 2 09/2001 52208197690 $176.33 ENDED, +core
01 Headrest leather N6EG ENGL.GRUEN 2 09/2001 52208224701 $176.33 ENDED, +core
01 Headrest leather N6SW SCHWARZ 2 52208197686 $202.88
01 Headrest leather N6TT GRAU 2 52208197687 $202.88
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, montana

N6=Yes

O7=Yes
01 Headrest leather N6SN SANDBEIGE 2 52208197689 $202.88
01 Headrest leather N6LG,O7LG GELB 2 52208258943 $176.33 ENDED
01 Headrest leather N6GN,O7GN GRUEN 2 52208258944 $202.88 ENDED
For vehicles with
M Sports package
and
Cloth "Headline"

P337A=Yes

G3=Yes
01 Head rest cloth G3AT ANTHRAZIT 2 09/1998 52202699558 $158.47 ENDED
For vehicles with
Cloth flock "Streifen"
or
Cloth flock "Streifen"

D3=Yes

D9=Yes
01 Head rest cloth D3AT,D9AT ANTHR 2 09/1998 52208197671 $120.53 ENDED, +core
01 Head rest cloth D3TT,D9TT GRAU 2 09/1998 52208197672 $120.53 ENDED, +core
01 Head rest cloth D3DL,D9DL BLAU 2 09/1998 52208197673 $120.53 ENDED, +core
02 Guide left 2 52201977897 $7.28
02 Guide right 2 52201977898 $7.28
03 Cover SCHWARZ 4 52108191245 $1.66
04 Base 2 52108169458 $2.54
05 Covering Lower 4 52101838969 $0.43
06 Guide bush SCHWARZ 4 52208208877 $1.80
07 Spring washer 1,4 MM 4 52108132021 $0.23
07 Spring washer 1,75 MM 4 52208221511 $0.40
only applies to
center-seat headrest
08 Head rest support 1 52208176175 $20.49
09 Fillister head screw M6X16 8 07119906423 $0.18
For vehicles with
Diagonal rep cloth

F4=Yes
10 Headrest, center seat F4AT ANTHRAZIT 1 03/1998 52208158790 $120.53 ENDED, +core
10 Headrest, center seat F4TT GRAU 1 03/1998 52208158791 $120.53 ENDED, +core
10 Head rest cloth F4SR SIENAROT 1 09/1998 09/2001 52207047598 $120.53 ENDED, +core
10 Headrest, center seat F4BR BIARR.BLAU 1 09/1998 09/2001 52208158792 $120.53 ENDED, +core
10 Headrest, center seat F4DL MARINEBLAU 1 09/2001 52207054525 $120.53 ENDED, +core
10 Headrest, center seat F4EG ENGL.GRUEN 1 09/2001 52207054526 $120.53 ENDED, +core
For vehicles with
Buffalo leather/Bubinga

P2=Yes
10 Headrest, center seat P2AT ANTHRAZIT 1 09/2001 52208206661 $206.46 ENDED
For vehicles with
Softleather Bubinga

N9=Yes
10 Headrest, center seat N9SW SCHWARZ 1 09/2001 52208206656 $206.46 ENDED
10 Headrest, center seat N9TT GRAU 1 09/2001 52208206657 $206.46 ENDED
10 Headrest, center seat N9DL 1 09/2001 52208206658 $206.46 ENDED
10 Headrest, center seat N9SN BEIGE 1 09/2001 52208206659 $206.46 ENDED
10 Headrest, center seat N9NG,R1NG BRAUN 1 09/2001 52208261660 $206.46 ENDED
For vehicles with
Cloth/leather "Sportline"

J3=Yes
10 Headrest, center seat J3AT ANTHRAZIT 1 09/2001 52207049590 $158.47 ENDED, +core
10 Headrest, center seat J3FA FLANELGRAU 1 09/2001 52207049591 $158.47 ENDED, +core
10 Headrest, center seat J3GC GRAUBLAU 1 09/2001 52207049592 $158.47 ENDED, +core
For vehicles with
Leather Highline

V6=Yes
10 Headrest, center seat V6SW SCHWARZ 1 09/2001 52207049386 $206.46 ENDED, +core
10 Headrest, center seat V6SN SANDBEIGE 1 09/2001 52207049387 $206.46 +core
10 Headrest, center seat V6BG BURGUND 1 09/2001 52207049388 $206.46 ENDED, +core
For vehicles with
Cloth flock

F6=Yes
10 Headrest, center seat F6AT ANTHRAZIT 1 09/1998 09/2001 52208251470 $120.53 ENDED
10 Headrest, center seat F6DL MARINEBLAU 1 09/1998 09/2001 52208251471 $120.53 ENDED, +core
10 Headrest, center seat F6TT GRAU 1 09/1998 09/2001 52208251472 $120.53 ENDED, +core
10 Headrest, center seat F6EG ENGL.GRUEN 1 09/1998 09/2001 52208255903 $120.53 ENDED, +core
For vehicles with
Imitation leather

K4=Yes
10 Headrest, center seat K4SW SCHWARZ 1 52208218430 $120.53 ENDED, +core
10 Headrest, center seat K4SN SANDBEIGE 1 52208218431 $120.53 ENDED
For vehicles with
Fabric, woolen velours/Vavona wood

B7=Yes
10 Headrest, center seat B7AT ANTHRAZIT 1 09/1998 52208198126 $120.53 ENDED, +core
10 Headrest, center seat B7TT GRAU 1 09/1998 52208198127 $120.53 ENDED, +core
10 Headrest, center seat B7DL MARINEBLAU 1 09/1998 52208198128 $120.53 ENDED, +core
10 Headrest, center seat B7SX MEERGRUEN 1 09/1998 52208198130 $120.53 ENDED, +core
For vehicles with
Fabric, flat "Rattan"

D4=Yes
10 Headrest, center seat D4AT ANTHRAZIT 1 09/1998 52208198132 $120.53 ENDED, +core
10 Headrest, center seat D4TT GRAU 1 09/1998 52208198133 $120.53 ENDED, +core
10 Headrest, center seat D4EG ENGL.GRUEN 1 09/1998 52208198134 $120.53 ENDED, +core
10 Headrest, center seat D4KU KOENIGBLAU 1 09/1998 52208198135 $120.53 ENDED, +core
For vehicles with
Leather Mont./basic equipm.

N6=Yes
10 Headrest, center seat N6AI AUBERGINE 1 09/2001 52208198139 $170.75 ENDED, +core
10 Headrest, center seat N6SY SAT.BRAUN 1 09/2001 52208198141 $170.75 ENDED, +core
10 Headrest, center seat N6EG ENGL.GRUEN 1 09/2001 52208224702 $170.75 ENDED, +core
10 Headrest, center seat N6SW SCHWARZ 1 52208198137 $202.88
10 Headrest, center seat N6TT GRAU 1 52208198138 $202.88 ENDED, +core
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, montana

N6=Yes

O7=Yes
10 Headrest, center seat N6SN SANDBEIGE 1 52208198140 $202.88 +core
10 Headrest, center seat N6LG,O7LG GELB 1 52208261219 $170.75 ENDED
10 Headrest, center seat N6GN,O7GN GRUEN 1 52208261220 $202.88 ENDED, +core
For vehicles with
M Sports package
and
Cloth "Headline"

P337A=Yes

G3=Yes
10 Headrest, center seat G3AT ANTHRAZIT 2 09/1998 52202699562 $158.47 ENDED
For vehicles with
Cloth flock "Streifen"
or
Cloth flock "Streifen"

D3=Yes

D9=Yes
10 Headrest, center seat D3AT,D9AT ANTHR 1 09/1998 52208198122 $120.53 ENDED, +core
10 Headrest, center seat D3TT,D9TT GRAU 1 09/1998 52208198123 $120.53 ENDED, +core
10 Headrest, center seat D3DL,D9DL BLAU 1 09/1998 52208198124 $120.53 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
