5' E39 530i Front seat rail electrical/single parts

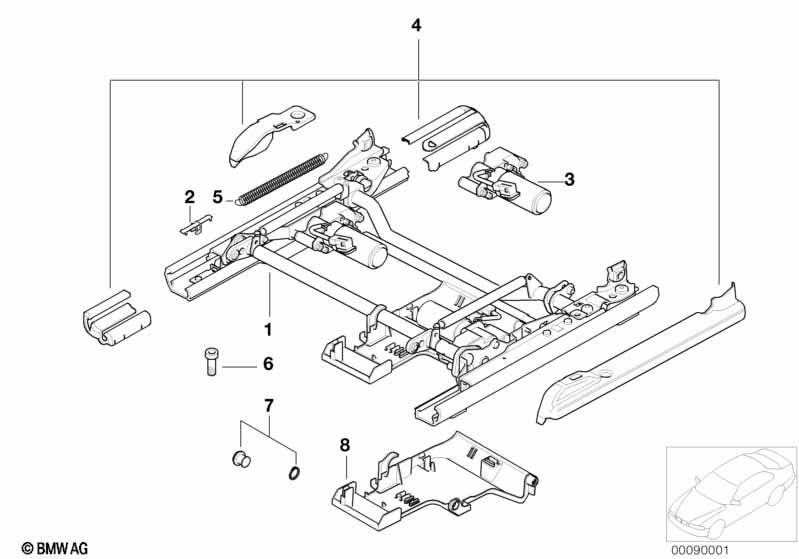

Front seat rail electrical/single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
MODEL WITHOUT MEMORY
ONLY APPLIES TO CO-DRIVERS SIDE
01 Seat rail right 1 52108207404 $571.20
MODEL WITH MEMORY ONLY APPLIES TO
DRIVER'S SIDE
01 Seat rail left 1 52108207203 $571.20 ENDED
02 Stopper 2 52108170537 $3.27
03 Drive f longitudinal and tilt adjustment 4 67318352191 $82.36
FOR
DRIVER AND CO-DRIVER
04 Cover GRAU 1 52108217314 $33.68
04 Cover SCHWARZ 1 52108217315 $33.68
04 Cover LAVENDELGRAU 1 52108217316 $33.68
04 Cover SANDBEIGE 1 52108217317 $33.68
04 Cover PASTELLGRUEN 1 52108217318 $30.43
05 Tension spring 4 52108157404 $5.25
06 Fillister-head screw M12 4 51108244820 $20.38
06 Fillister-head screw M10 4 52108162348 $1.14
07 Bush bearing set 2 52108231862 $3.11
08 Bracket set f plugs 1 52108157401 $12.13
Notes
  • ENDED = the part has been discontinued (no longer available).
