5' E39 530i Rear seat center armrest

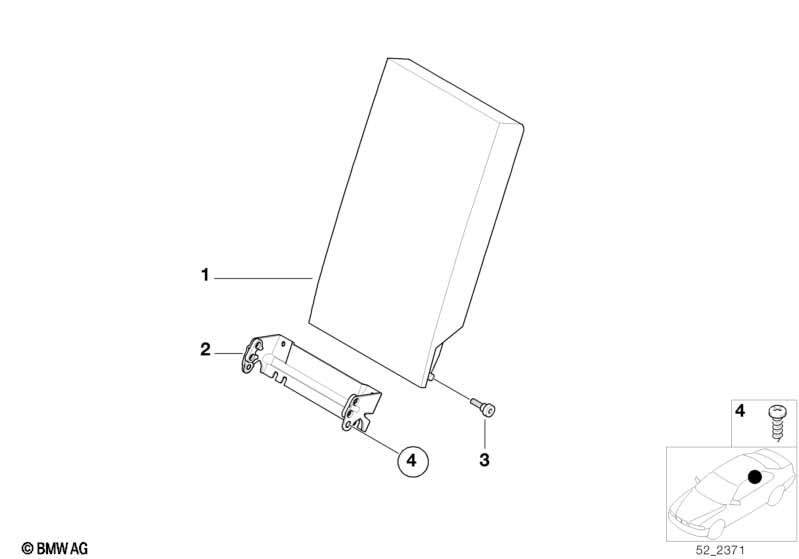

Rear seat center armrest
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Diagonal rep cloth

F4=Yes
01 Armrest cloth F4AT ANTHRAZIT 1 03/1998 52208251163 $407.34 ENDED
01 Armrest cloth F4TT GRAU 1 03/1998 52208251166 $407.34 ENDED
01 Armrest cloth F4BR BIARR.BLAU 1 09/1998 09/2001 52208251164 $407.34 ENDED
01 Armrest cloth F4SR SIENAROT 1 09/1998 09/2001 52208251165 $407.34 ENDED
01 Armrest cloth F4DL MARINEBLAU 1 09/2001 52207054535 $407.34 ENDED
01 Armrest cloth F4EG ENGL.GRUEN 1 09/2001 52207054536 $407.34 ENDED
For vehicles with
Cloth flock

F6=Yes
01 Armrest cloth F6AT ANTHRAZIT 1 09/1998 09/2001 52208254304 $407.34 ENDED
01 Armrest cloth F6DL MARINEBLAU 1 09/1998 09/2001 52208254305 $407.34 ENDED
01 Armrest cloth F6EG ENGL.GRUEN 1 09/1998 09/2001 52208254306 $407.34 ENDED
01 Armrest cloth F6TT GRAU 1 09/1998 09/2001 52208254307 $407.34 ENDED
For vehicles with
Leather Highline

V6=Yes
01 Armrest leather V6SW SCHWARZ 1 09/2001 52207049394 $641.70 ENDED, +core
01 Armrest leather V6SN SANDBEIGE 1 09/2001 52207049395 $641.70 ENDED
01 Armrest leather V6BG BURGUND 1 09/2001 52207049396 $641.70 ENDED
For vehicles with
Cloth/leather "Sportline"

J3=Yes
01 Armrest leather J3AT ANTHRAZIT 1 09/2001 52207049598 $574.74 ENDED
01 Armrest leather J3FA FLANELGRAU 1 09/2001 52207049599 $574.74 ENDED
01 Armrest leather J3GC GRAUBLAU 1 09/2001 52207049600 $574.74 ENDED
For vehicles with
Fabric, flat "Rattan"

D4=Yes
01 Armrest cloth D4AT ANTHRAZIT 1 09/1998 52208198283 $407.34 ENDED
01 Armrest cloth D4TT GRAU 1 09/1998 52208198284 $407.34 ENDED
01 Armrest cloth D4EG ENGL.GRUEN 1 09/1998 52208198285 $407.34 ENDED
01 Armrest cloth D4KU KOENIGBLAU 1 09/1998 52208198286 $407.34 ENDED
For vehicles with
Fabric, woolen velours/Vavona wood

B7=Yes
01 Armrest cloth B7AT ANTHRAZIT 1 09/1998 52208198287 ENDED, +core
01 Armrest cloth B7TT GRAU 1 09/1998 52208198288 ENDED, +core
01 Armrest cloth B7DL MARINEBLAU 1 09/1998 52208198289 ENDED, +core
01 Armrest cloth B7SX MEERGRUEN 1 09/1998 52208198291 ENDED, +core
For vehicles with
Cloth flock "Streifen"

D3=Yes
01 Armrest cloth D3AT,D9AT ANTHR 1 09/1998 52208198275 $407.34 ENDED
01 Armrest cloth D3TT,D9TT GRAU 1 09/1998 52208198277 $407.34 ENDED
01 Armrest cloth D3DL,D9DL BLAU 1 09/1998 52208198279 $407.34 ENDED
For vehicles with
Leather Mont./basic equipm.

N6=Yes
01 Armrest leather N6AI AUBERGINE 1 09/2001 52208198294 $574.74 ENDED
01 Armrest leather N6SY SAT.BRAUN 1 09/2001 52208198296 $574.74 ENDED
01 Armrest leather N6EG ENGL.GRÜN 1 09/2001 52208225660 $574.74 ENDED
01 Armrest leather N6SW SCHWARZ 1 52208198293 $588.93 ENDED
01 Armrest leather N6TT GRAU 1 52208208859 $588.93 ENDED
For vehicles with
M Sports package
and
Cloth "Headline"

P337A=Yes

G3=Yes
01 Armrest cloth G3AT ANTHRAZIT 2 03/2000 52202699554 $574.74 ENDED
For vehicles with
Leather Mont./basic equipm.
or
Standard leather, montana

N6=Yes

O7=Yes
01 Armrest leather N6SN,O7SN BEIGE 1 52208198295 $588.93 ENDED
01 Armrest leather N6LG,O7LG LIGHT 1 52208258841 $641.70 ENDED, +core
01 Armrest leather N6GN,O7GN GRUEN 1 52208258842 $641.70 ENDED, +core
02 Bracket armrest 1 52208176213 $22.73
03 Screw M5X12 2 52208176214 $0.55 ENDED
04 Fillister head screw M6X12-Z1 2 07119907596 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
