5' E39 530i Front seat backrest frame/rear panel

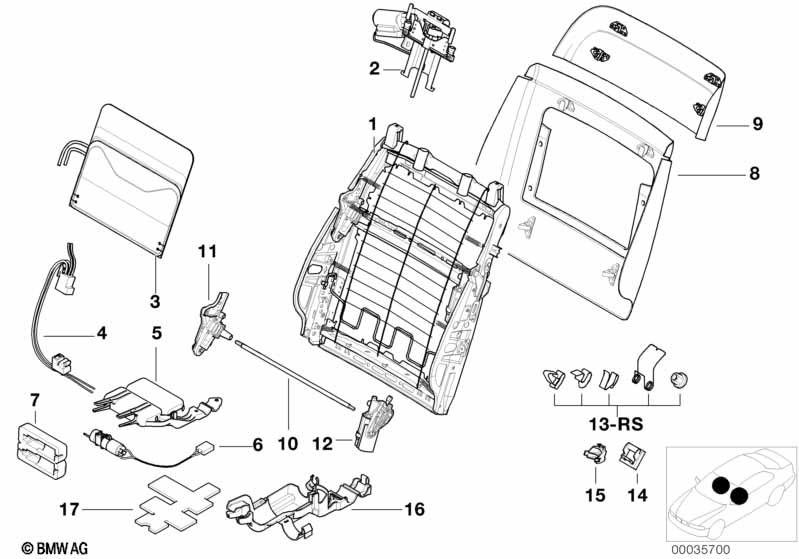

Front seat backrest frame/rear panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Comfort seat with memory

S456A=Yes
For vehicles with
Comfort seat with memory
ONLY APPLIES TO CO-DRIVERS SIDE

S456A=Yes
01 Backrest frame 1 52108200322 $430.23 ENDED
For vehicles with
Comfort seat with memory
ONLY APPLIES TO DRIVER'S SIDE

S456A=Yes
01 Backrest frame 1 52108200321 $486.68
For vehicles with
Comfort seat with memory
ONLY APPLIES TO CO-DRIVERS SIDE

S456A=Yes
02 Head rest support electr. 1 09/1999 52108150894 ENDED
02 Head rest support electr. 1 52107010145 $162.69
For vehicles with
Comfort seat with memory
ONLY APPLIES TO DRIVER'S SIDE

S456A=Yes
02 Head rest support electr. 1 09/1999 52108150923 $148.43 ENDED
02 Head rest support electr. 1 52107010142 $172.55
For vehicles with
Lumbar support, driver and passenger

S488A=Yes
03 Lordosis pad 2 52108170562 $37.83
04 Lumbar support compressed air unit 2 52108162272 $97.65 ENDED
06 Drive unit lordosis pad 2 04/1998 67668378948 $86.25
For vehicles with
Comfort seat with memory
CLOTH VERSION WOOL VELOURS

S456A=Yes
08 Lower rear panel GRAU 2 52108175774 $241.40 +core
08 Lower rear panel ANTHRAZIT 2 52108175775 $261.14 +core
08 Lower rear panel MARINEBLAU 2 52108175776 $261.14
08 Lower rear panel SEEGRUEN 2 52108199422 $238.82 ENDED
For vehicles with
Comfort seat with memory
IMITATION LEATHER
ONLY APPLIES TO LEATHER VERSION MONTANA

S456A=Yes
08 Lower rear panel GRAU 2 52108175779 $241.40
08 Lower rear panel SCHWARZ 2 52108175780 $241.40
08 Lower rear panel SANDBEIGE 2 52108175782 $241.40
08 Lower rear panel DUNKELGRUEN 2 52108189108 +core
For vehicles with
Comfort seat with memory
and
Leather trim
UPHOLSTERY LEATHER MONTANA

S456A=Yes

=Yes
08 Lower rear panel BURGUND 2 52107055660 $460.91 +core
08 Lower rear panel GRAU 2 52108175784 $474.01 ENDED
08 Lower rear panel SCHWARZ 2 52108175785 $474.01
08 Lower rear panel MARINEBLAU 2 52108175786 $460.91 ENDED, +core
08 Lower rear panel SANDBEIGE 2 52108175787 $474.01
For vehicles with
Comfort seat with memory
CLOTH VERSION WOOL VELOURS

S456A=Yes
09 Upper rear panel GRAU 2 52108175745 $84.29 +core
09 Upper rear panel ANTHRAZIT 2 52108175746 $69.47 +core
09 Upper rear panel MARINEBLAU 2 52108175747 $89.56 +core
09 Upper rear panel SEEGRUEN 2 52108199421 $102.39 ENDED, +core
For vehicles with
Comfort seat with memory
IMITATION LEATHER
ONLY APPLIES TO LEATHER VERSION MONTANA

S456A=Yes
09 Upper rear panel GRAU 2 52108175751 $84.29 +core
09 Upper rear panel SCHWARZ 2 52108175752 $84.29
09 Upper rear panel SANDBEIGE 2 52108175754 $84.29 +core
09 Upper rear panel DUNKELGRUEN 2 52108189101 $70.87 +core
For vehicles with
Comfort seat with memory
and
Leather trim
UPHOLSTERY LEATHER MONTANA

S456A=Yes

=Yes
09 Upper rear panel BURGUND 2 52107055659 $119.41
09 Upper rear panel GRAU 2 52108175757 $135.69 +core
09 Upper rear panel SCHWARZ 2 52108175758 $135.69 +core
09 Upper rear panel MARINEBLAU 2 52108175759 $119.41 +core
09 Upper rear panel SANDBEIGE 2 52108175760 $135.69 +core
For vehicles with
Comfort seat with memory

S456A=Yes
10 Flex.shaft vertical seat adjuster left 2 52108175056 $19.11
11 Backrest adjustment gearbox 2 52108175055 $103.56
For vehicles with
Comfort seat with memory
ONLY APPLIES TO CO-DRIVERS SIDE

S456A=Yes
12 Actuator f upper backrest adjustment 2 67318352263 $221.04
For vehicles with
Comfort seat with memory
and
Memory
ONLY APPLIES TO DRIVER'S SIDE

S456A=Yes

=Yes
12 Actuator f upper backrest adjustment 2 67668352262 $215.60
For vehicles with
Comfort seat with memory

S456A=Yes
13 Mounting parts set 1 52108197043 ENDED
14 Clip 4 52108175054 $2.29
15 Clip 4 12/2003 52108175053 $0.66
15 Repair kit clamps 4 52107240386
For vehicles with
Lumbar support, driver and passenger

S488A=Yes
16 Holder 2 04/1998 52108242781 $6.18
17 Sound insulation 2 04/1998 52108248237 $1.54
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
