5' E39 530i Seat heating

Seat heating
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For upholstery variants that are not
listed
the backrest/seat cover must be ordered
REFER TO MAIN GROUP 52
For vehicles with
Sports seat
and
  Diagonal rep cloth
  or
  Cloth "Headline"
  or
  Cloth/leather "Sportline"

S481A=Yes

F4=Yes

G3=Yes

J3=Yes

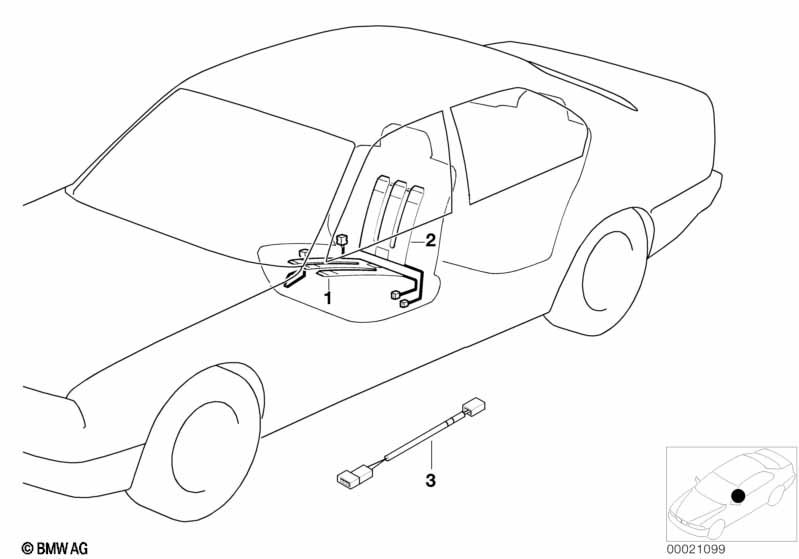

01 Heater element seat 120 W 2 09/1998 52108253115 $123.14 +core
02 Heater element backrest 120 W 2 09/1998 52108253116 $86.14 +core
03 Adapter cable for seat heater 2 09/1998 61129069761 $77.25 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
