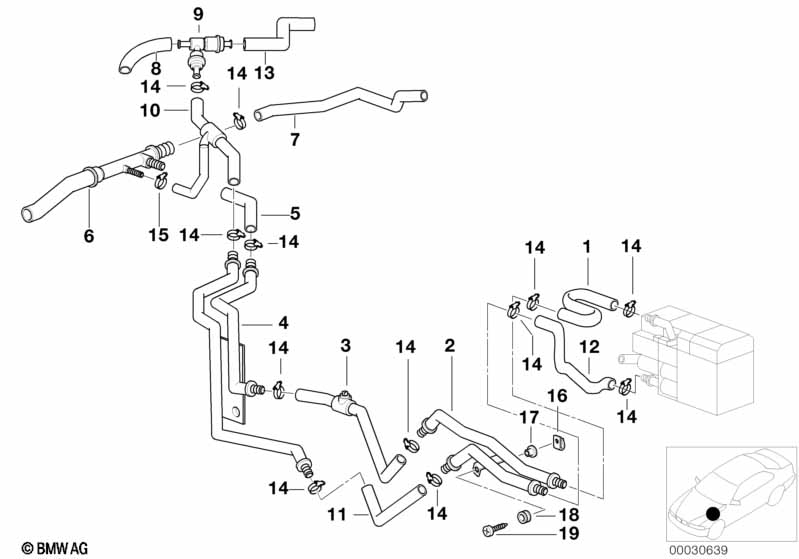

5' E39 530i Independent heating water valves

Independent heating water valves
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hose f additional heater and double pipe 1 64218362555 +core
02 Double pipe 1 1 05/2001 64128362967 $59.40 ENDED
02 Double pipe 1 1 64126916537 $69.62
03 Hose f double pipe 1 and double pipe 2 1 64218363927
04 Double Pipe 2 1 64128369427
05 Water hose 1 64218379344
06 Hose, inlet 1 64218363928 +core
07 Water hose 1 09/1998 64218363398 ENDED, +core
07 Hose f engine inlet and water valve 1 64218383222
08 Hose 1 64218363864
09 Double check valve 1 64128379872 $70.87
10 Water hose 1 64218369423
11 Hose f double pipe 2 and double pipe 1 1 64218363380
12 Hose f double pipe and additional heater 1 64218362556 +core
13 Water hose 1 64218363863
14 Hose clamp L16-30 X 64218367179 $1.07
15 Hose clamp L10-16 X 10/1978 16121180237 $1.31 ENDED
15 Hose clamp L12-15 X 07129952104 $1.18
16 Expanding nut ST 6.3 1 51718259474
17 Bush 1 64128375279
18 Grommet 1 64128374551 $1.98
19 Fillister head screw 1 64128259473
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
