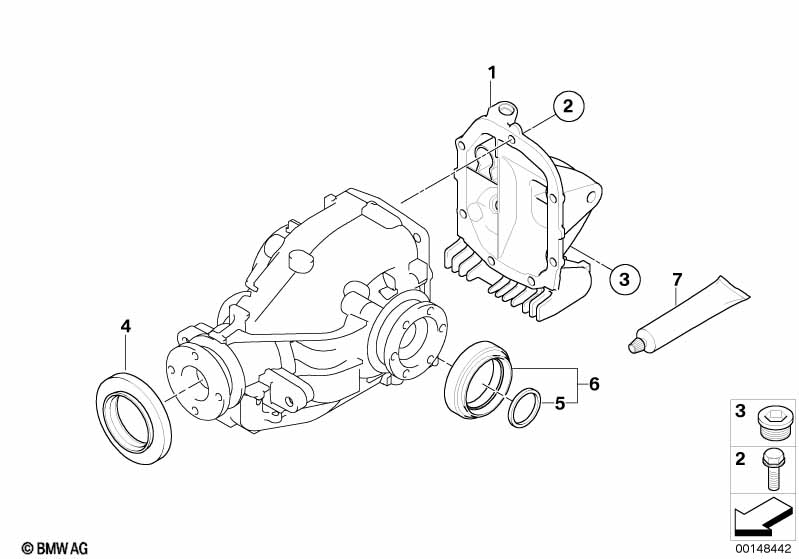

Z4 E86 Z4 3.0si Final drive, gasket set

Final drive, gasket set
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission cover TYP 188K 1 33117512980 $139.10
See repair manual
02 Hex bolt with washer M10X25-10.9ZNS3 7 07119905147 $1.07
See repair manual
02 Hex bolt with washer M10X60-10.9ZNS3 1 07119905148 $1.78
See repair manual
03 Screw plug with O-ring M22X1,5-ZNS3 2 33117525064 $3.91
See repair manual
04 Shaft seal 45X75X10 AW 188 2 31507609535
See repair manual
05 Lock Ring D=22,4 2 33131214961 $0.29
See repair manual
06 Shaft seal with lock ring TYP 188 1 33107505604 $18.30
See repair manual
07 Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
See repair manual
