Z4 E86 Z4 M3.2 Crankcase-Ventilation/oil separator

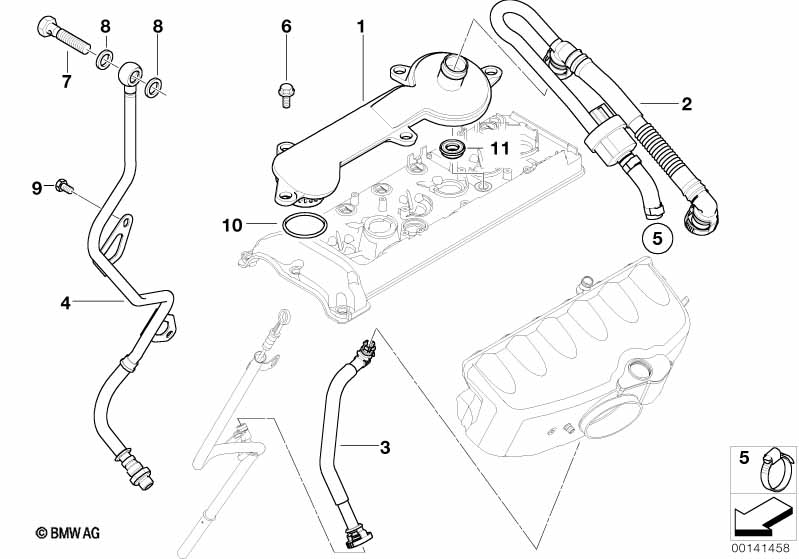

Crankcase-Ventilation/oil separator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil separator 1 11157840446 $33.39 +core
02 Vent hose 1 11157831311 $15.37
03 Vent hose 1 11617831930 $45.18
04 Return pipe 1 11157832781 $99.25
06 Hexagon screw with flange M6X20 5 07119905546 $6.73
07 Hollow bolt 1 07119905427 $2.25
08 Gasket ring A12X15-CU 2 07119963129 $0.11
10 O-ring 34X4 1 11157830966 $3.27
11 Profile-gasket 1 11157832119 $6.08
Notes
  • +core = plus core charge (possibility of a return of the old part)
