Z4 E86 Z4 M3.2 Vacuum control - engine

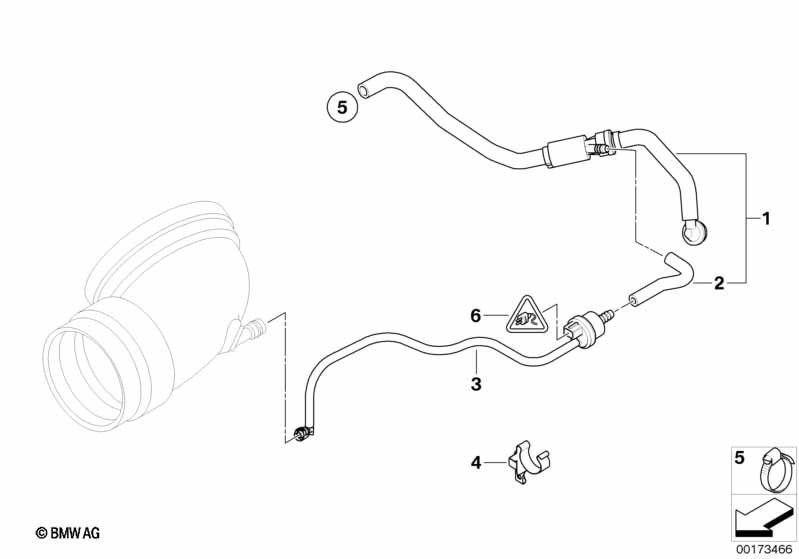

Vacuum control - engine
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Sucking jet pump with lines 1 11617836601 $80.42 +core
02 Hose elbow 1 11617837114 $8.17
03 Air shut-off valve 1 11617840499 $81.21
04 Shut-off valve bracket 1 11617836603 $16.63
05 Hose clamp 21,3MM 1 11151726339 $1.02
06 Socket housing 2 POL. 1 01/2007 12521427615 $1.73
only in conjunction with
-- Socket terminal SLK 2.8 ELA 0,22-0,35MM² AG 2 01/2007 12521427612 $0.50 SI 2 02 05(194)
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
