Z4 E86 Z4 M3.2 Front body bracket left

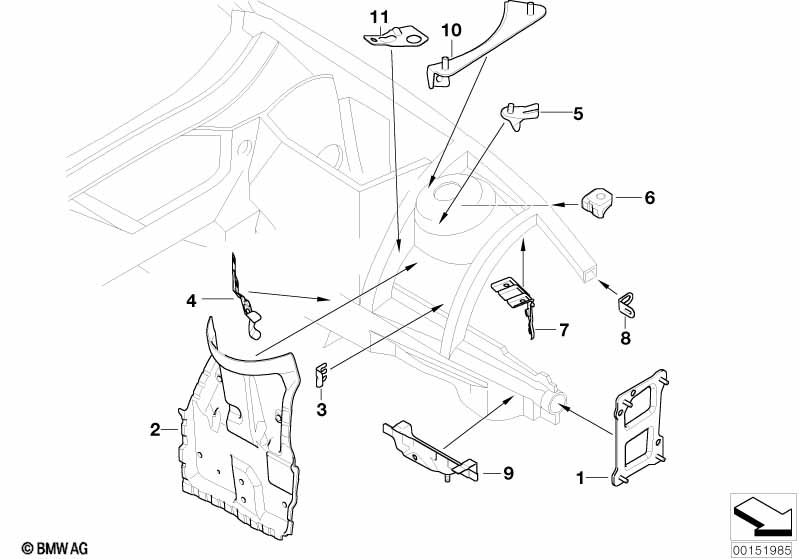

Front body bracket left
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Mount for deformation element left 1 41117064705 $16.98
02 Support, wheelhouse left 1 41117064615 $65.22
03 Bracket ABS plug connection 1 41117064491 $5.19
04 Bracket, coolant hose 1 41117116122 $6.32
05 Mount for strut brace 1 41007193040 $12.71
06 Holder, brake hose 1 41117064490 $7.63
07 Bracket side panel left 1 41117064611 $16.40
08 Bracket, front panel, left 1 41117179665 $5.40
09 Left stabilizer support 1 41117161493 $24.76
10 Bracket, expansion tank 1 41008041427 $10.43
11 Support, cooling water expansion tank 1 41008041426 $3.92
