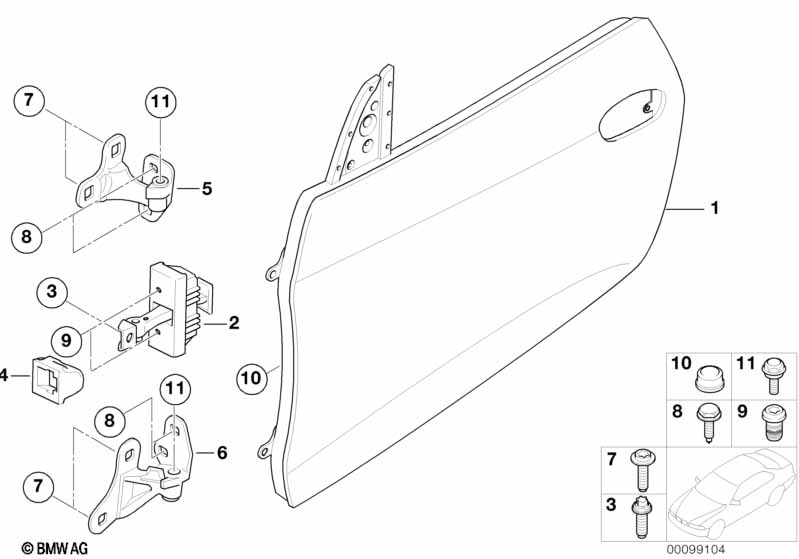

Z4 E86 Z4 M3.2 Front door-hinge/door brake

Front door-hinge/door brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left front door, steel 1 41517201637 $797.46
only in conjunction with
-- Sound deadener, door 1 51481923969 $7.73
-- Seal, outer left mirror triangle 1 51337148935 $65.56
01 Right front door, steel 1 41517201638 $797.46
only in conjunction with
-- Sound deadener, door 1 51481923969 $7.73
-- Seal, outer right mirror triangle 1 51337148936 $65.56
02 Door brake 2 51217176806 $35.65
03 Torx-bolt with washer ASA M8X25 4 51217062145 $1.17
04 Door stop seal, front left 1 51217061599 $10.95
04 Door stop seal, front right 1 51217061600 $10.95
05 Door hinge, top left 1 41517176821 $106.57
05 Door hinge, top right 1 41517176822 $106.57
06 Door hinge, bottom left 1 41517177257 $32.13
06 Door hinge, bottom right 1 41517177258 $31.56
07 Hex bolt with washer M10X35 8 07146966140 $1.33
08 Torx bolt ISA M8X28 8 41517070099 $1.12
09 Oval-head screw with anti-rotation lock ISA M6X12 4 51217061955 $0.69
10 Protection cap SCHWARZ 2 51218177670 $0.33
11 Hexagon countersunk screw M8X17 4 41517064599 $1.27
