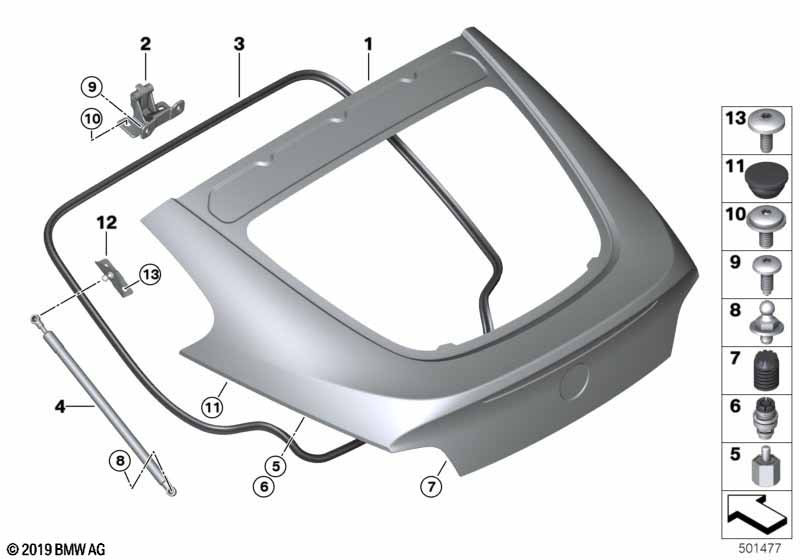

Z4 E86 Z4 M3.2 Single components for trunk lid

Single components for trunk lid
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trunk lid 1 41003420711 $1028.64
02 Left trunk lid hinge 1 41003420713 $65.62
02 Right trunk lid hinge 1 41003420714 $65.62
04 Gas pressurized spring f trunk lid 2 51243420572 $41.57
05 Retaining mount 2 51243420579 $16.72
06 Stop buffer 2 51247161069 $19.50
07 Stop buffer 2 51248254063 $1.35
08 Ball pin M8 2 07/2007 41627033657 $3.32 ENDED
08 Ball pin M8X10 2 07/2007 07147075104 $3.64 ENDED
08 Ball pin M8X10 2 07/2007 07146963081 $3.66
08 Ball pin M8 2 07/2007 41003449380 $3.25
09 Torx-bolt with washer ISA M8X20 4 01/1998 41610390003 $0.62 ENDED
09 Torx-bolt with washer ISA M8X20 4 05/2007 41618229906 $0.80 ENDED
09 Torx-bolt with washer ISA M8X20 4 08/2008 51249145721 $0.80 ENDED
09 Combi oval-head machine screw ISA M8X20 4 07147234925
10 Torx screw with collar M8X24MM 4 07147126263 $0.87
11 Blind plug D=12MM 2 51718110199 $0.18
12 Holder for gas spring 2 41003420900
13 Torx-bolt with washer 4 51233447111 $1.14
Notes
  • ENDED = the part has been discontinued (no longer available).
