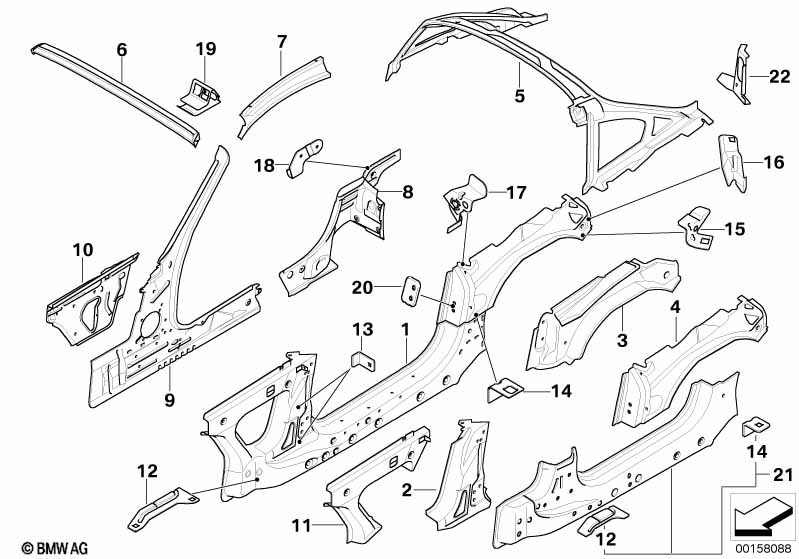

Z4 E86 Z4 M3.2 Single components for body-side frame
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41003427183 | $2127.68 | |||||
| 01 | Side frame, exterior, right | 1 | 41003427184 | $2127.68 | |||||
| 02 | Left exterior column A | 1 | 41003427851 | $210.53 | |||||
| 02 | Column A exterior right | 1 | 41003427852 | $210.53 | |||||
| 03 | Interior left column B | 1 | 41003427193 | $400.24 | |||||
| 03 | Column B inside right | 1 | 41003427194 | $400.24 | |||||
| 04 | Exterior left column B | 1 | 41003427195 | $385.86 | |||||
| 04 | Exterior right column B | 1 | 41003427196 | $385.86 | |||||
| 05 | Rear roof frame | 1 | 41003427463 | $2072.59 | |||||
| 06 | Upper apron | 1 | 41003427190 | +core | |||||
| 07 | Left interior roof frame | 1 | 41003427197 | $167.71 | |||||
| 07 | Left interior roof frame | 1 | 41003427198 | $167.71 | |||||
| 08 | Rear left side member | 1 | 41117167841 | $125.00 | |||||
| 08 | Right rear side member | 1 | 41117167842 | $125.00 | |||||
| 09 | Side member, front, left | 1 | 41003449183 | ||||||
| 09 | Side member, front, right | 1 | 41003449184 | ||||||
| 10 | Left interior column A | 1 | 41217064619 | $110.58 | |||||
| 10 | Right interior column A | 1 | 41217064620 | $110.58 | |||||
| 11 | Connect.plate f.left side panel frame | 1 | 41217064701 | $36.70 | |||||
| 11 | Connect.plate f.right side panel frame | 1 | 41217064702 | $36.70 | |||||
| 12 | Bracket, side panel, entrance left | 1 | 41217064691 | $11.35 | |||||
| 12 | Bracket, side panel, entrance, right | 1 | 41217064692 | $11.35 | |||||
| 13 | Bracket, side panel column A | 2 | 41217064697 | $9.23 | |||||
| 14 | Bracket, side panel rear, sill | 1 | 41217064693 | $8.89 | |||||
| 15 | Bracket, side panel, rear left | 1 | 41007064685 | $8.60 | |||||
| 15 | Bracket, side panel, rear right | 1 | 41007064686 | $8.60 | |||||
| 16 | Bracket, side panel, rear left | 1 | 41217064635 | $8.02 | |||||
| 16 | Bracket, side panel, rear right | 1 | 41217064636 | $8.02 | |||||
| 17 | Bracket, side panel rear, filler pot | 1 | 41217111468 | $11.35 | |||||
| 18 | Brake pipe bracket | 1 | 41117114890 | $11.77 | |||||
| 19 | Reinforcement winshield frame | 2 | 41003440309 | ||||||
| 20 | Lock plate | M8 | 2 | 41218215401 | $2.14 | ||||
| 21 | Exterior left entrance | 1 | 41217064689 | $685.27 | |||||
| 21 | Exterior right entrance | 1 | 41217064690 | $685.27 | |||||
| 22 | C-pillar, inner bottom left | 1 | 41003449409 | $12.88 | |||||
| 22 | C-pillar, inner bottom right | 1 | 41003449410 | $12.88 |
Notes
- +core = plus core charge (possibility of a return of the old part)
