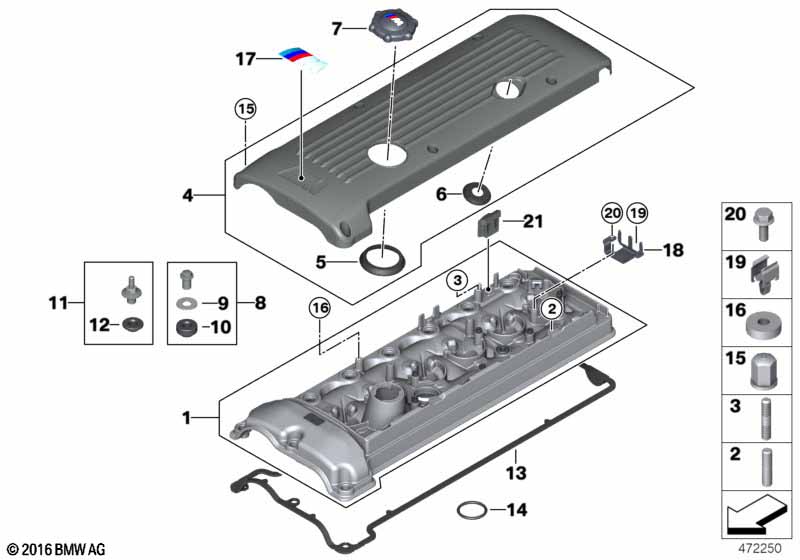

Z4 E86 Z4 M3.2 Cylinder head cover

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Cylinder head cover		1			11127838754	$380.13
02	Stud bolt	M6X25	2			07129904545	$1.79
03	Stud bolt	M6X30-ZNNIV SI	2			07129904544	$1.42
04	Cover		1			11127835905	$213.06
05	Gasket		1			11127837024	$8.54
06	Gasket		1			11127837025	$6.08
07	Cap for oil filler		1			11127832157	$16.16
08	Cap nut	M7	13			11127838075	$3.17
09	Washer		13			11127838077	$1.23
10	Rubber seal		13			11127830972	$1.42
11	Cap nut	M6X34	2			11127838078	$4.10
12	Rubber seal		2			11121437395	$1.17
13	Profile-gasket		1			11127832034	$43.57
14	Profile-gasket		6			11127831271	$8.54
15	Cap nut	M6	6			11121401517	$4.50
16	Shim	6,4X18X5	2			11127832085	$3.08
17	Emblem adhered	M	1			11617831266	$34.77		+core
18	Bracket, lambda plug		1			12527836608	$6.62
19	Plug-in connection bracket		2			07149157161	$1.31
20	Hex bolt	M5X10	2			07119904442	$0.80
21	Grommet ignition coil cover		1			12517831185

Notes

• +core = plus core charge (possibility of a return of the old part)
